CURRENT:HOME > PRODUCTS - The Macro Lenses - SMC3528-12M ( 35mm ) 1.1"
Product name:SMC3528-12M ( 35mm ) 1.1"
Product description:

FA Lens Features:

  • High resolution :      12 megapixel cover all 4K & 1080P
  • Large format:          1.1" size covering 1", 2/3", 1/1.8" camera
  • Big aperture :          F2.8 big aperture makes imaging far better
  • Low distortion :        0.05% low distortion use machine vision
  • Woring distance:      59-150mm
  • Magnification :         0.25x-0.7x
  • Application :            Machine vision, FA, high quality.



    Model

    SMC3528-12M

    Resolution

    12 Megapixel

    Format inch

    1.1"

    Focal Length mm

    35mm

    ApertureClose

    F2.8 Manual Iris

    Angle of View (°) HxV

    1.1"

    56*42 (0.25x)

    2/3"

    1/2"

    Working distancemm

    59-150mm

    Magnification

    0.25x-0.7x

    Distortion

    <0.05%

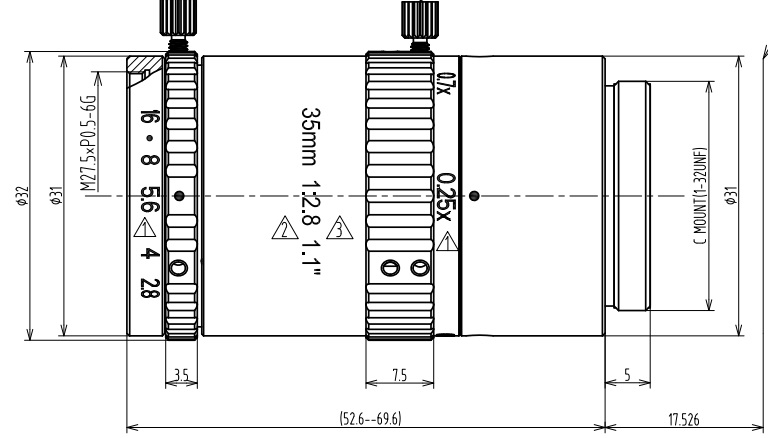

    Size

    Φ32*57.6

    Mount

    C

    Weight g

    210
