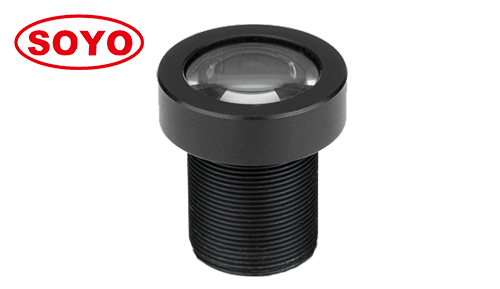

Product name:SND3328-5M ( 3mm ) 1/2"
Product description:


3mm 1/2" 5.0 Megapixel Lenses Machine Vision FA <0.1% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens

  • High resolution :       5 megapixel covering all 5MP & 1080P
  • Large format:           1/2" size covering 1/2", 1/2.5", 1/2.7" camera
  • Low distortion :        <0.1% super low distortion
  • B.F.L / M.F.L :           5.63mm / 5.12mm
  • C.R.A :                     <
  • Illumination:              >78%
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, UAV, scanner, sports DV, machine vision.



    Model 型号

    SND3328-5M

    Resolution 解像力

    5.0 Megapixel

    Max Image 像高

                                     >Φ8

    Format (inch) 靶面

    1/2"

    Focal Length mm)焦距

    3.0 mm

    ApertureClose)光圈

    F2.8 Fixed Iris

    Angle of View (°) DxHxV

    1/1.8"

    1/2"

    100*86*70

    1/2.5"

    M.O.D (m) 最近物距

    0.1m

    Dimension 尺寸

    Φ18.8*17.65

    TTL (mm) 光学总长

    23.7

    Distortion TV 畸变

    <0.1%

    Mount 接口

    M12

    Weight (g) 重量

    8g
