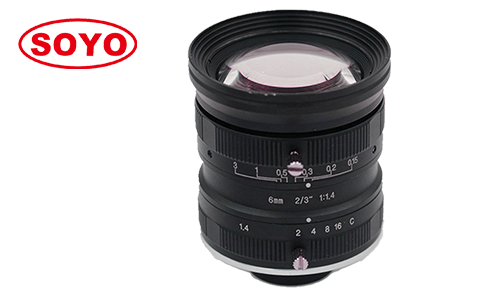

Product name:SMV0614-5M ( 6mm ) 2/3"
Product description:


6mm 2/3" 5MP Machine Vision FA <1.5% Low Distortion F1.4 Industrial Recognition Fixed ITS Automotive AI Sort Camera Lens C Mount Megapixel Lenses

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        <1.5% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model 型号

SMV0614-5M

Format inch靶面

2/3”

Resolution 像素

5.0 Megapixel

Focal Length mm焦距

6mm

Image format 像高

8.75

ApertureClose光圈

F1.4-C

Angle of View (°) 视场角

2/3"

86*79*49   (16:9)

2/3"

86*74*58.6 ( 4:3 )

M.O.D (m) 最近物距

0.1m

Distortion畸变

<1.5%

Relative Illumination 照度

>58%

C.R.A 主光线角度

2.5°

B.F.L 光学后焦

8.57mm

Size (mm) 尺寸

Φ45*46.95

Mount 接口

C

Weight g重量

220g

Element 组成

11G
