Current：Home > Products - 3.0 Megapixel CCTV Lenses - SVD0850XIR-3M (8-50mm) 1/1.8"

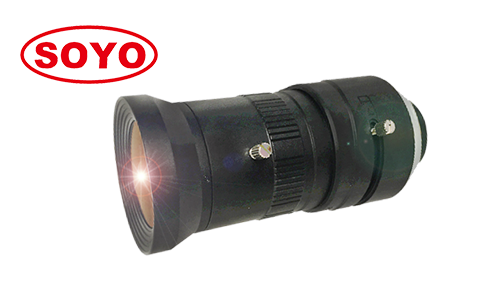

Product name：SVD0850XIR-3M (8-50mm) 1/1.8"
Product description：


1/1.8" 8-50mm 3.0 Megapixel Lenses Security Surveillance Camera Smart City ITS Face Recognition Varifocal C/CS Mount CCTV Lens China Optics


  • High resolution :     3.0 megapixel cover all 3MP,1080P 像素300万
  • Large formate:        1/1.8" size covering 1/1.8", 1/2"camera 大靶面
  • IR correction :         24h day & night vision 日夜红外矫正
  • Long focal length:    8-50mm focal length covering 10-50mm & 12-50mm, 10-40mm
  • Application :            All metrol, smart city, ITS, toll gate, park, highway, safe city.




Model 型号

SVD0850XIR-3M

Resolution 像素

3.0 Megapixel

IR Correction 红外

IR

Format 靶面

1/1.8"

Focal Length 焦距

8-50mm

Aperture  (Close/360) 光圈

F1.6 DC Iris

Angle of View (°)

视场角

2/3"

/

1/2"

/

1/1.8"

62*46*34

M.O.D 最近物距

0.3m

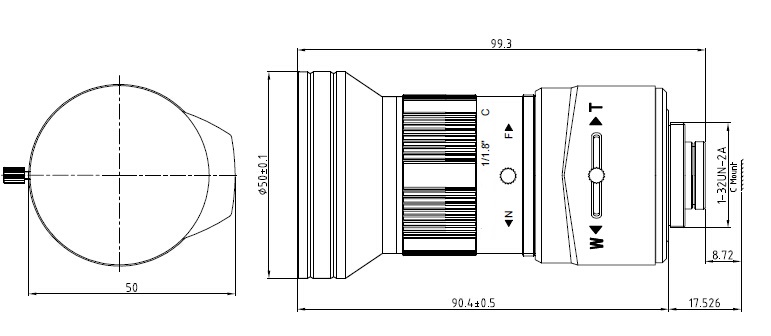

Size 尺寸

Φ50x90.4mm

Distortion 畸变

-19.2% ~ -0.9%

Mount 接口

C

Weight 重量

251g

(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
