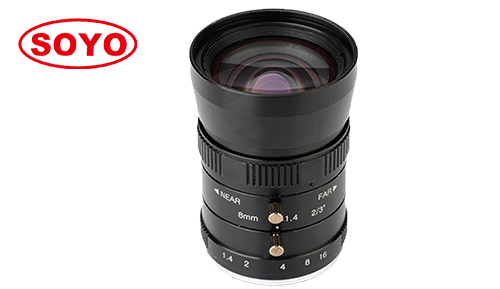

Product name:SMV0814-5M ( 8mm ) 2/3"
Product description:


8mm 2/3" 5MP Machine Vision FA <-0.73% Low Distortion F1.4 Industrial Recognition 4K ITS AI Sort Camera C Megapixel Lenses

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        -0.73% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model

SMV0814-5M

Resolution

5.0 Megapixel

Format  (inch)

2/3"

Focal Length  (mm)

8.0 mm

B.F.L (mm )

7.79mm

Aperture  (Close)

F1.4 Manual iris

Angle of View (°)

2/3"

66.8*55.8*43.3

1/2"

51.4*42*32

1/3"

M.O.D  (m)

0.2m

Distortion

-0.73%

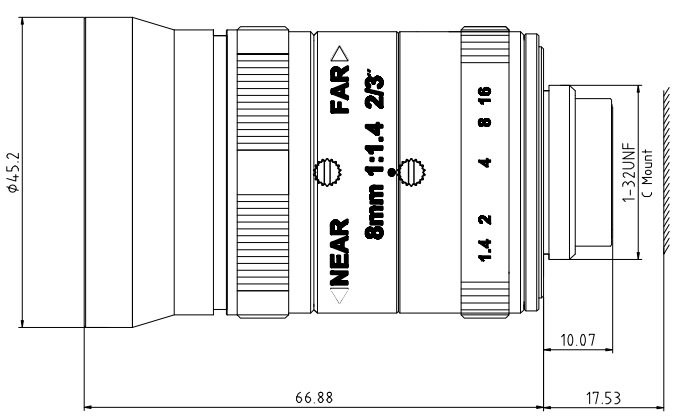

Size

Φ45.2*66.88

T.T.L(mm)

81.3mm

Mount

C

Weight  (g)

180g
