Current:Home > Products - SWIR Lens - SWIR2514-5MS (25mm) 2/3" 900~1700nm

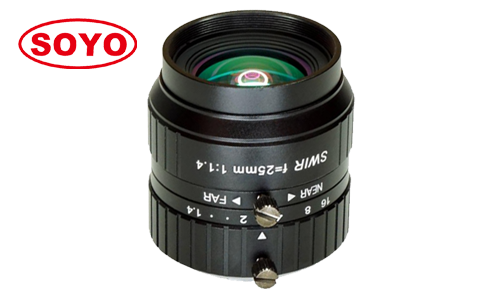

Product name:SWIR2514-5MS (25mm) 2/3" 900~1700nm
Product description:

SWIR Shot Wave IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment

25mm 2/3" 5Megapixel Lens Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion  <-0.45% Special Camera Inspection

短波红外900~1700nm镀膜宽波段镜头用于色选、食品医药检测等






Model 型号

SWIR2514-5MS

Resolution 像素

5 Megapixel

Format 靶面

2/3"

Focal Length 焦距

25mm

Aperture 光圈

F1.4-16 Manual Iris

Angle of View (°) 视场角

2/3"

20*15.2

1/1.8"

17*12.4

1/2"

15*11

M.O.D 最近物距

0.2m

MTF 解像

100lp/mm

Filter Screw 螺纹尺寸

M30.5*0.5

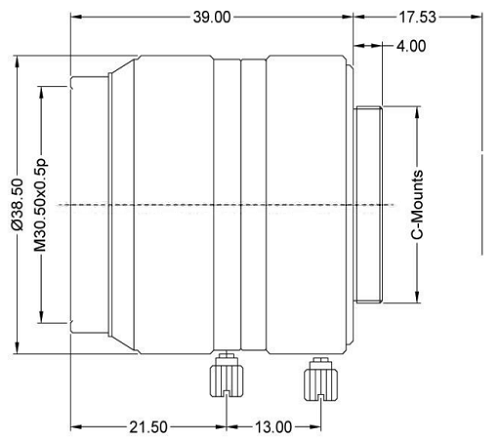

Dimension 尺寸

Φ38.5*39mm

Distortion 畸变

<-0.45%

Wavelength 波长

900~1700nm

Mount 接口

C

Weight 重量

110g

Marks 备注

Element 8G
