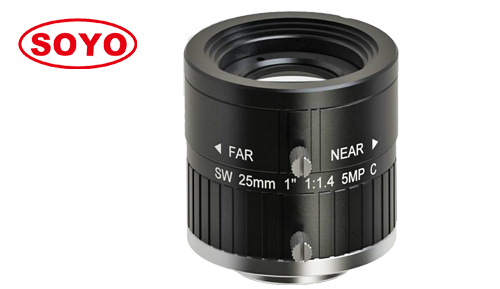

Product name：S1WIR2514-5M (25mm) 1" 900~1700nm
|
|
Product description：
|
SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment
25mm 1" 5.0 Megapixel Machine Vision FA Lenses For SWIR Shortwave IR Camera 900~1700nm Coating Used For Inspection
|
Model 型号
|
S1WIR2514-5M
|
|
Resolution 像素
|
5 Megapixel
|
|
Format 靶面
|
1"
|
|
Focal Length 焦距
|
25mm
|
|
Aperture(Close)光圈
|
F1.4 Manual Iris
|
|
Angle of View (°) DxHxV
|
1"
|
28.6*21.5*15.4
|
|
M.O.D 最近物距
|
0.6~0.8m
|
|
B.F.L 光学后焦
|
11.46mm
|
|
M.F.L 机械后焦
|
8.97mm
|
|
T.T.L 光学总长
|
53.7mm
|
|

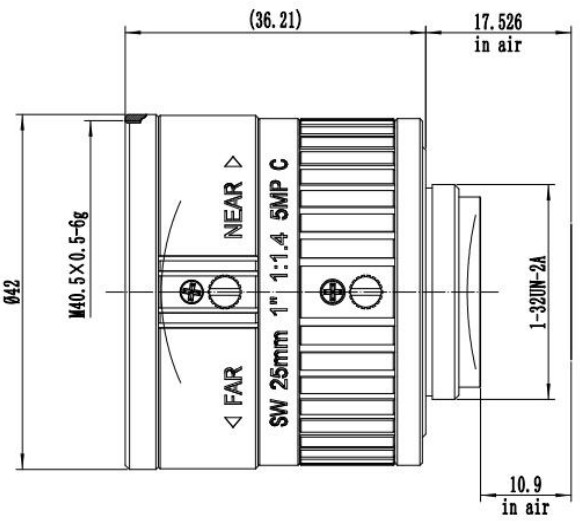

Dimension 尺寸
|
Φ42*36.21mm
|
|
Distortion 畸变
|
-1.39%
|
|
Wavelength 波长
|
900~1700nm
|
|
Mount 接口
|
C
|
|
Weight 重量
|
180g
|
|
|
