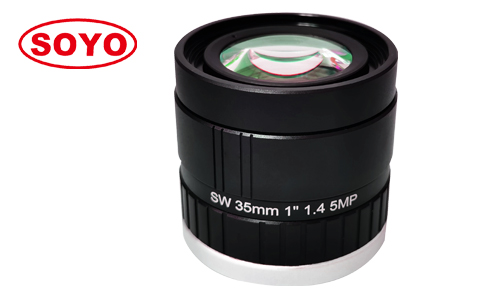

Product name：S1WIR3514-5M (35mm) 1" 900~1700nm
|
|
Product description：
|
SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment
35mm 1" 5.0 Megapixel Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion -0.54% Special Camera Invisible Inspection
|
Model 型号
|
S1WIR3514-5M
|
|
Resolution 像素
|
5 Megapixel
|
|
Format 靶面
|
1"
|
|
Focal Length 焦距
|
35mm
|
|
Aperture 光圈
|
F1.4 Manual Iris
|
|
Angle of View (°) DxHxV
|
1"
|
25.2*20.3*15.2
|
|
M.O.D 最近物距
|
0.5m
|
|
B.F.L(mm) 光学后焦
|
13.67mm
|
|
M.F.L(mm) 机械后焦
|
9.92mm
|
|
T.T.L 光学总长
|
53.7mm
|
|

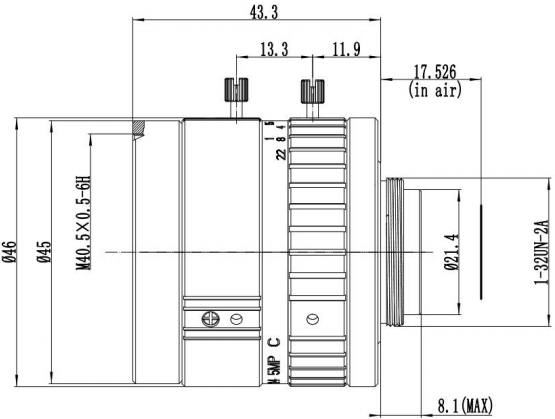

Dimension 尺寸
|
Φ45*43.3mm
|
|
Distortion 畸变
|
-0.54%
|
|
Wavelength 波长
|
900~1700nm
|
|
Mount 接口
|
C
|
|
Weight 重量
|
156g
|
|
|
