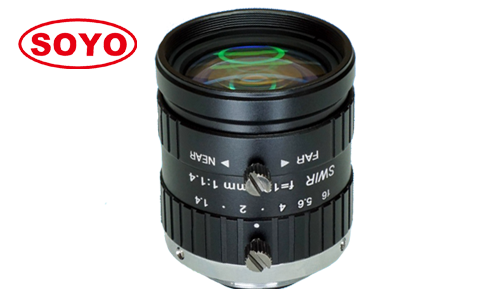

Product name：SWIR1214-5MS (12mm) 2/3" 900~1700nm
|
|
Product description：
|
SWIR Shot Wave IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment
12mm 2/3" 5Megapixel Lens Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion <0.23% Special Camera Inspection
短波红外900~1700nm镀膜宽波段镜头用于色选、食品医药检测等
.
|
Model 型号
|
SWIR1214-5MS
|
|
Resolution 像素
|
5 Megapixel
|
|
Format 靶面
|
2/3"
|
|
Focal Length 焦距
|
12mm
|
|
Aperture 光圈
|
F1.4-16 Manual Iris
|
|
Angle of View (°) 视场角
|
2/3"
|
40*30
|
|
1/2"
|
33*25
|
|
1/3"
|
29*22
|
|
M.O.D 最近物距
|
0.2m
|
|
MTF 解像
|
100lp/mm
|
|
Filter Screw 螺纹尺寸
|
M30.5*0.5
|
|

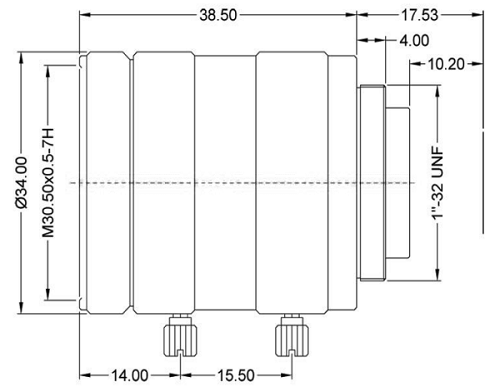

Dimension 尺寸
|
Φ34*38.5mm
|
|
Distortion 畸变
|
<0.23%
|
|
Wavelength 波长
|
900~1700nm
|
|
Mount 接口
|
C
|
|
Weight 重量
|
93g
|
|
Marks 备注
|
Element 10G
|
|
|
