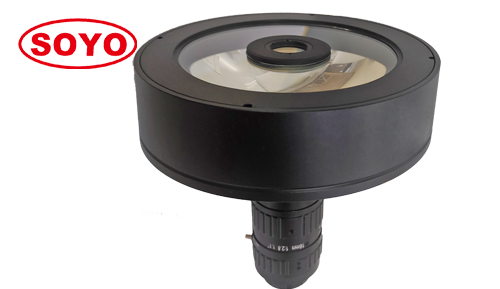

SOD4250 Catadioptric 360° Degree Outer View Outwall Surface Imaging Sensor 1.1" Object Out Diameter 42~50mm & Matched Height 39~80mm For Sort Machinery ( 360度外壁检测镜头支持外径50高度80 ）
Download 下载 ==> SOD4250
* Outer view surface imaging 外壁360度成像
* Varity of format / sensor size 1.1", 1", 2/3", 1/1.8" 小于1.1靶面均可使用
* High resolution megapixel 高像素
* Large Diagram Object 42~50mm Out Diameter 可测大直径被测物42~50mm外径
* Matched object height from 239~80mm
* Application : pharmacy, bottle, tube etc. 用于医药类、瓶装类，管类、圆柱类外壁
* Originally made in China 100% 纯中国制造
* Net weight 净重: 2KG
More wonderful test pictures, please browse google drive ( Browse )
Drive: https://drive.google.com/file/d/1FZCTOKhZ05zaNt6SisdLQSW3U8grJFaJ/view?usp=drive_link
|
