Current:Home > Products - 1/1.7" 12 Megapixel Lens - SVFA1055-10M ( 10-55mm ) 1/1.7"
Product name:SVFA1055-10M ( 10-55mm ) 1/1.7"
Product description:


10-55mm Varifocal 1/1.7" 10 Megapixel Machine Vision Manual Iris Lenses FA Low Distortion -0.1%~0.05% Industrial Camera Lens Automation Measurement Positioning Computer AI C Mount China Optics Fixed Focal Length Manual Iris 超大视场角10-55mm大靶面1/1.7"像素1000万紧凑型视觉定位测量镜头可调光圈低畸变-0.1%~0.05%


  • High resolution :       10 megapixel
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion -0.1%~0.05% for measurement and vision
  • Application :             Automation, machine vision,3D, Computer Vision AI.



Model 型号

SVFA1055-10M

Format 靶面

1/1.7

Resolution 像素

10 Megapixel

Focal Length 焦距

10-55mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.7"

W: 51*41*31  T: 9.6*7.7*5.8

1/1.8

W: 49*41*28  T: 9.2*7.7*5.2

1/2.8"

W: 36*31*18  T: 6.7*5.8*3.3

M.O.D最近物距

W 10mm ~ T 200mm

Distortion(TV) 畸变

-0.1% ~ 0.05%

Filter Size 滤镜尺寸

M35.5  P=0.5

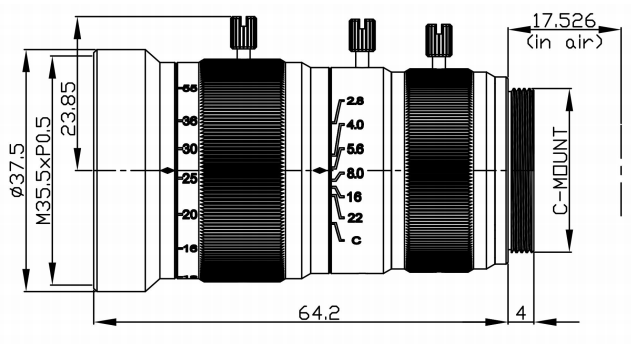

Dimension 尺寸

Φ37.5*64.2mm

Mount 接口

C

Weight 重量

118g

Marks 备注

-

Temperature 工作温度

-20°~+6

Cell: 86-18949838193
Skype/wechat: soyocctv
PRE:SFA5024-12M ( 50mm ) 1/1.7"        NEXT:none
