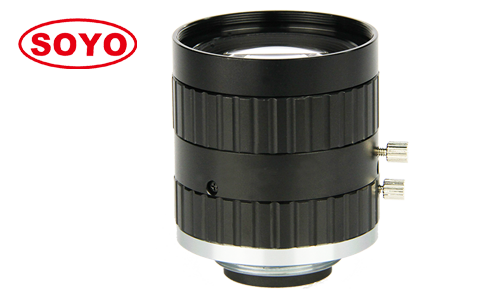

Product name:SFA3524-12M ( 35mm ) 1/1.7"
Product description:


35mm 1/1.7" 12MP Machine Vision FA Lens Low Distortion <0.04% Industrial Automation Scanning Recognition C/CS Megapixel Optical Lenses


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         <0.04% for measurement and vision
  • Application :             Automation, machine vision, medical, life science etc.


Model 型号

SFA3524-12M

Format 靶面

1/1.7”(744mmX5.62mm)

Resolution 像素

12.0 Megapixel

Focal Length 焦距

35mm

Aperture 光圈

F2.4

Angle of View (°) 视场角

1/1.7"

14.1*11.5*7.7 ( 47*38*29mm@0.2m)

1/2"

12*9.6*6.37 ( 41*33*24.2mm@0.2m)

M.O.D最近物距

0.15m

Distortion(TV) 畸变

<0.04% @1/1.7” ; <0.03% @1/2

Filter Size 滤镜尺寸

M27*P0.5

Relative illumination 相对照度

>87.7%

CRA 主光线夹角

<8.6°

Magnification 倍率

0.279X~∞

Dimension 尺寸

Φ29*41.25mm

Mount 接口

C

Weight 重量

102g

Marks 备注

Element 8G / B.F.L 光学后焦:10.47mm

Temperature 工作温度

-10°~+50°
