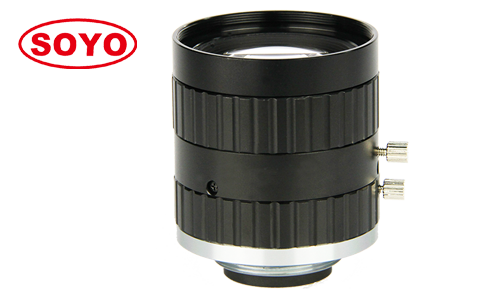

Product name:SFA0624-12M ( 6mm ) 1/1.7"
Product description:


6mm 1/1.7" 12MP Machine Vision FA Lens Low Distortion <0.32% Industrial Automation Scanning Recognition C/CS Megapixel Optical Lenses


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         <0.32% for measurement and vision
  • Application :             Automation, machine vision, medical, life science etc.

Model 型号

SFA0624-12M

Format 靶面

1/1.7”(744mmX5.62mm)

Resolution 像素

12.0 Megapixel

Focal Length 焦距

6.0mm

Aperture (Close) 光圈

F2.4 Manual iris

Angle of View (°) 视场角

1/1.7"

75.2*65*45.7 ( 333*266*199mm@0.2m)

1/2"

62.6*54*38.1 ( 286*229*172mm@0.2m)

M.O.D最近物距

0.1m

Distortion(TV) 畸变

<0.32%

Filter Size 滤镜尺寸

/

Relative illumination 相对照度

>49.9%

CRA 主光线夹角

<3°

Magnification 倍率

0.054X~∞

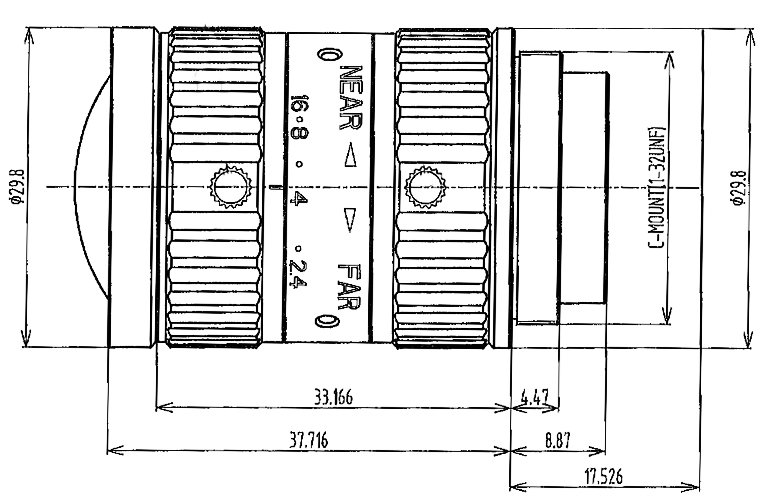

Dimension 尺寸

Φ29.8*37.7mm

Mount 接口

C

Weight 重量

145g

Marks 备注

Element 11G / B.F.L 光学后焦:10mm

Temperature 工作温度

-10°~+50°
