Current:Home > Products - 1/1.7" 12 Megapixel Lens - SFA5028-12M ( 50mm ) 1/1.7"
Product name:SFA5028-12M ( 50mm ) 1/1.7"
Product description:


50mm 1/1.7" 12MPixel Megapixel Lenses Machine Vision FA Low Distortion Industrial Recognition Area Scan Automation Computer Positioning Measurement AI Sort Camera Lens


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion 0.003% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model 型号

SFA5028-12M

Format 靶面

1/1.7”(Φ9.5mm)

Resolution 像素

12 Megapixel

Focal Length 焦距

50mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.7"

10.5*8.4*6.3

M.O.D最近物距

0.25m

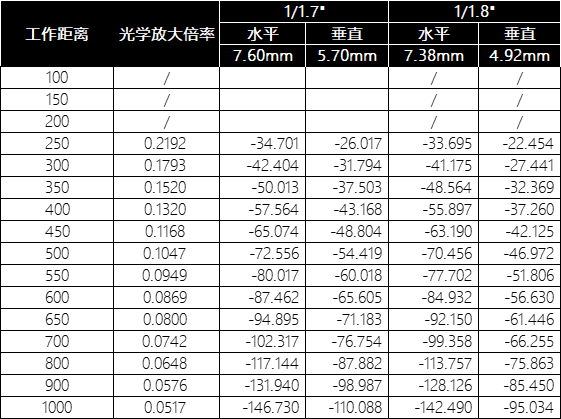

Distortion(TV) 畸变

Max 0.1% / Min 0.003% (WD=500mm)

Filter Size 滤镜尺寸

/

Relative illumination 相对照度

86%  (H=4.5mm WD=INF)

Transmission 透过率

AT486~656nm T≥85%

T.T.L 光学总长

65mm

B.F.L 光学后焦

28.38mm

CRA 主光线夹角

3.67°

Dimension 尺寸

Φ37*51.7mm

Mount 接口

C

Weight 重量

68g

Marks 备注

7G Element; BWD(基准距离)=500mm
