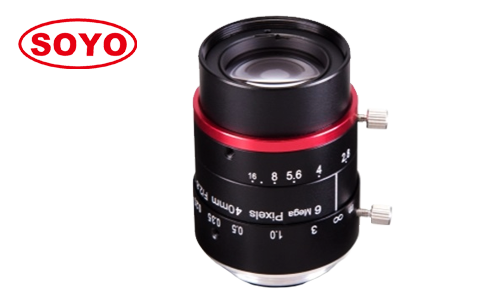

Product name:SFA4028-12M ( 40mm ) 1/1.7"
Product description:


40mm 1/1.7" 12MPixel Megapixel Lenses Computer Machine Vision FA Low Distortion Industrial Recognition Automation Measurement Positioning C/CS AI Sort Camera Lens


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion 0.02% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

SFA4028-12M

Format 靶面

1/1.7”(Φ9.5mm)

Resolution 像素

12 Megapixel

Focal Length 焦距

40mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.7"

11.2*9*7

M.O.D最近物距

0.25m

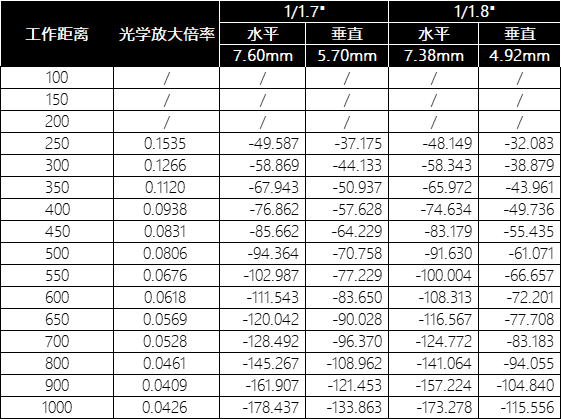

Distortion(TV) 畸变

Max 0.18% / Min 0.02% (WD=200~400mm)

Filter Size 滤镜尺寸

/

Relative illumination 相对照度

82%  (H=4.5mm WD=INF)

Transmission 透过率

AT486~656nm T≥85%

T.T.L 光学总长

56.36mm

B.F.L 光学后焦

24.5mm

CRA 主光线夹角

4.61°

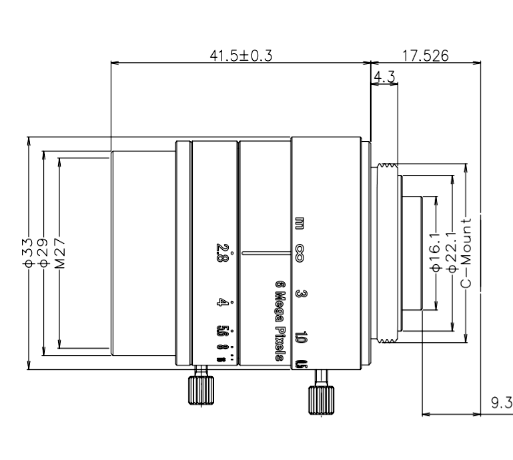

Dimension 尺寸

Φ33*41.5mm

Mount 接口

C

Weight 重量

68g

Marks 备注

7G Element
