Current:Home > Products - 1/1.7" 12 Megapixel Lens - SFA3028-12M ( 30mm ) 1/1.7"

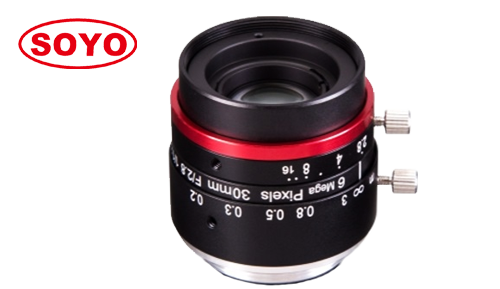

Product name:SFA3028-12M ( 30mm ) 1/1.7"
Product description:


30mm 1/1.7" 12MPixel Megapixel Lenses Machine Vision FA Low Distortion Industrial Automatic Positioning Measurement C/CS Camera Lens AI Sort


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion 0.03% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

SFA3028-12M

Format 靶面

1/1.7”(Φ9.5mm)

Resolution 像素

12 Megapixel

Focal Length 焦距

30mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.7"

15*11*9

M.O.D最近物距

0.2m

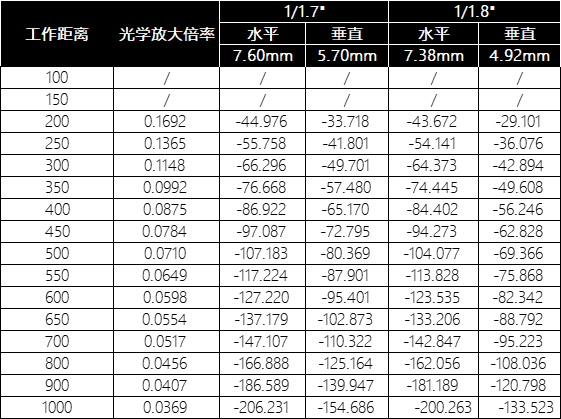

Distortion(TV) 畸变

Max 0.22% / Min 0.03% (WD=200~400mm)

Filter Size 滤镜尺寸

/

Relative illumination 相对照度

86%  (H=4.5mm WD=INF)

Transmission 透过率

AT486~656nm T≥85%

T.T.L 光学总长

41.07mm

B.F.L 光学后焦

17.33mm

CRA 主光线夹角

5.4°

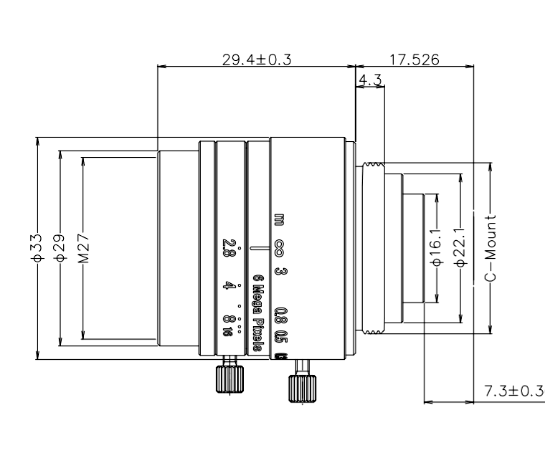

Dimension 尺寸

Φ33*29.4mm

Mount 接口

C

Weight 重量

50g

Marks 备注

7G Element
