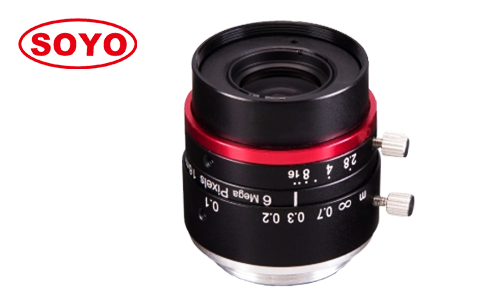

Product name:SFA1628-12M ( 16mm ) 1/1.7"
Product description:


16mm 1/1.7" 12MPixel Machine Vision FA Low Distortion Industrial Megapixel Lens Automatic Measurement C/CS Camera Lenses


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion 0.04% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

SFA1628-12M

Format 靶面

1/1.7”(Φ9.5mm)

Resolution 像素

12  Megapixel

Focal Length 焦距

16mm

Aperture (Close) 光圈

F2.8 Manual iris

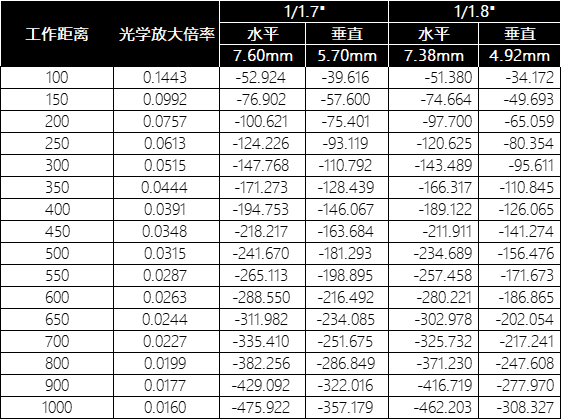

Angle of View (°) 视场角

1/1.7"

33*27*20

M.O.D最近物距

0.1m

Distortion(TV) 畸变

Max 0.23% / Min 0.04%(WD=200~400mm)

Filter Size 滤镜尺寸

M27*P0.5

Relative illumination 相对照度

AT486~656nm T≥85%

Transmission 透过率

76%  (H=4.5mm WD=INF)

T.T.L 光学总长

45mm

B.F.L 光学后焦

12.58mm

CRA 主光线夹角

6.7°

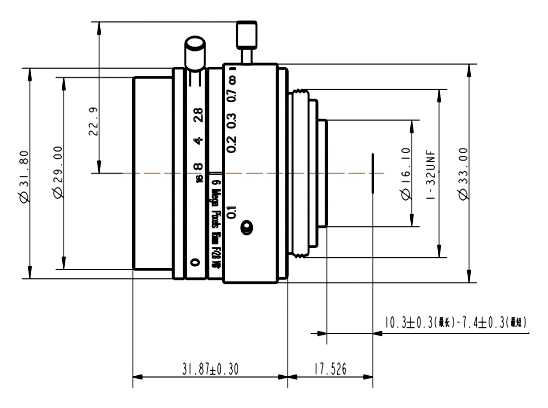

Dimension 尺寸

Φ33*31.8mm

Mount 接口

C

Weight 重量

55g

Marks 备注

8G Element
