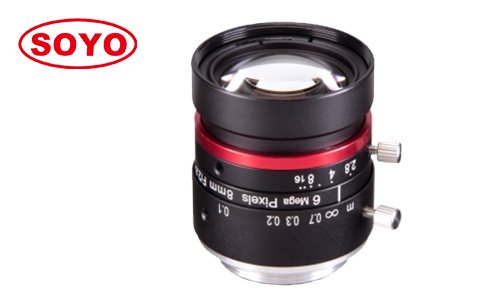

Product name:SFA0828-12M ( 8mm ) 1/1.7"
Product description:


8mm 1/1.7" 12 Megapixel Machine Vision Lenses FA Low Distortion Industrial Camera Lens Automation Measurement Positioning Computer AI C Mount China Optics


  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1/1.7" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion 0.11% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, SMT, AOI.



Model 型号

SFA0828-12M

Format 靶面

1/1.7" (Φ9.5mm)

Resolution 像素

12 Megapixel

Focal Length 焦距

8mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.7"

60*50*39

M.O.D 最近物距

0.1m

Distortion(TV) 畸变

Max 0.53% / Min 0.11% (WD=200~400mm)

Filter Size 滤镜尺寸

M30.5*P0.5

Relative illumination 相对照度

78%  (H=4.5mm WD=INF)

Transmission 透过率

AT486~656nm T≥85%

T.T.L 光学总长

52mm

B.F.L 光学后焦

10.39mm

CRA 主光线夹角

10.8°

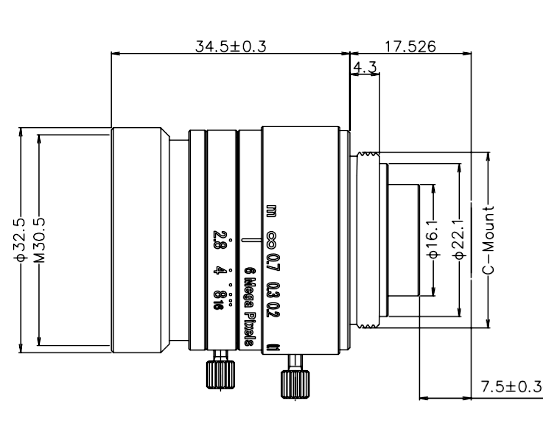

Dimension 尺寸

Φ32.5*34.5mm

Mount 接口

C

Weight 重量

61g

Marks 备注

9G
