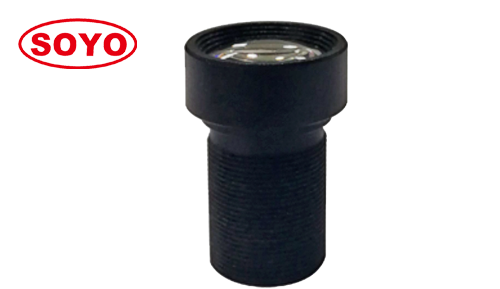

Product name:SIR2228-12MF ( 22mm ) 1/1.7"
Product description:


22mm 1/1.7" 12Megapixel Lenses M12 Machine Vision FA -1.15% Low Distortion Scanning Recognition Video Camera CCTV Lens 超低畸变人脸识别虹膜识别镜头

  • High resolution :       12 megapixel
  • Large format:           1/1.7", S mount M12
  • Low distortion :        -1.15% low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, recognition, scanner, sports DV, machine vision.


Model 型号

SIR2228-12MF

Resolution 像素

12 Megapixel

Format 靶面

1/1.7"

Pixel size 像元尺寸

1.85μm

Focal Length 焦距

22mm

Max Image Circle 最大像高

Φ9.2

Aperture (Close) 光圈

F2.8 Fixed iris

Field of View 视野

Φ9.2 1/1.7" FOV

213*174*130 @500mm W.D

342*279*208 @800m W.D

Angle of view 视场角 D*H*V  1/1.7"

21.4*19.3*17.3

Relative Illumination 相对照度

80%

Distortion 畸变

-1.15%

B.F.L 光学后焦

6.872mm

CRA 光线夹角

<7.97°

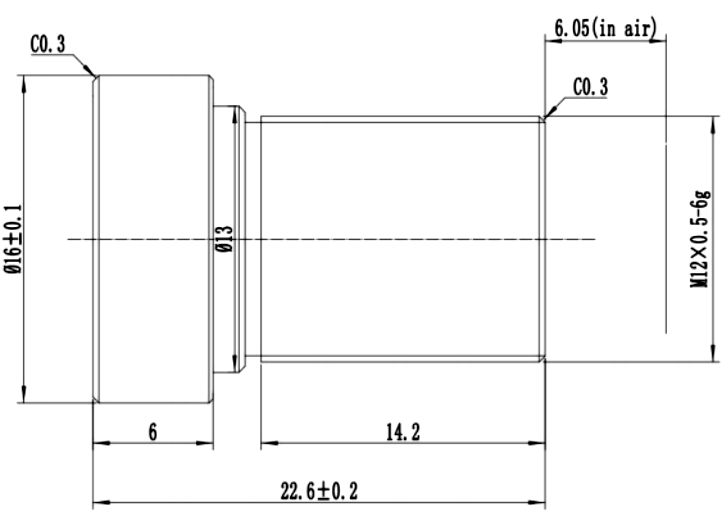

Size 尺寸

Φ16*22.6mm

Filter Size 滤镜尺寸

/

Mount 接口

M12

Weight 重量

8g
