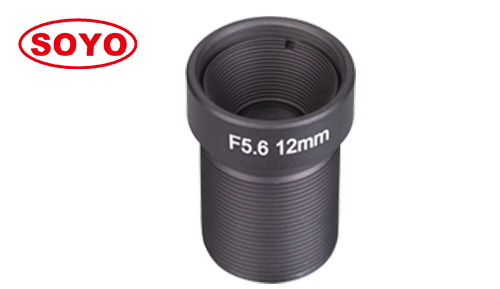

| Product name：SND1256-12M ( 12mm ) 1/1.7" | |||||||||||||||||||||||||||||||||||||||||
| Product description： | |||||||||||||||||||||||||||||||||||||||||
Model 型号
SND1256-12M
Resolution 像素
12 Megapixel
Format 靶面
1/1.7" / φ9.3
Focal Length 焦距
12mm
Aperture (Close) 光圈
F5.6 Fixed iris
Angle of View (°) 视场角
1/1.7"
33.16*22.44*40.28
1/2"
28.92*21.90*36.58
M.O.D 最近物距
60mm
FOV @ MOD 最近物距视场
-17.61 x -11.74

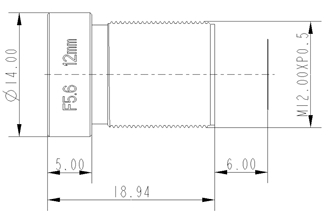

Size 尺寸
Φ14*18.94mm
Distortion TV畸变 (200~400mm WD)
-0.28%
Mount 接口
M12*P0.5
Weight 重量
4g
Marks (备注)
Working temperature -10° ~ +50°
|
|||||||||||||||||||||||||||||||||||||||||
