Current:Home > Products - 1/1.7" 1/1.8" Low distortion lens - SND1428F-12M ( 14mm ) 1/1.7"

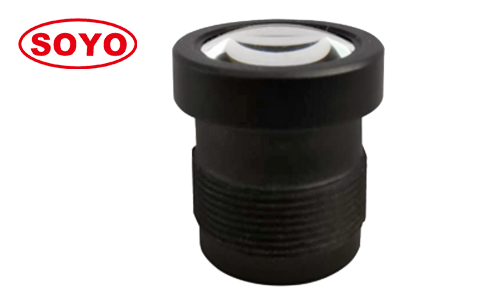

Product name:SND1428F-12M ( 14mm ) 1/1.7"
Product description:


14mm 1/1.7" 12Megapixel Lenses M12 S-mount Machine Vision FA -1.48% Low Distortion Scanning Recognition Video Camera CCTV Lens

  • High resolution :       12 megapixel
  • Large format:           1/1.7", S mount M12
  • Low distortion :        <0.45% low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, recognition, scanner, sports DV, machine vision.

Model 型号

SND1428F-12M

Resolution 像素

12 Megapixel

Format 靶面

1/1.7"

Pixel size 像元尺寸

1.85μm

Focal Length 焦距

14mm

Max Image Circle 最大像高

Φ9.2

Aperture (Close) 光圈

F2.8 Fixed iris

Field of View 视野

Φ9.2 FOV

196*160*119 @300mm W.D

326*266*199 @ 500m W.D

M.O.D 最近物距

/

Relative Illumination 相对照度

80%

Distortion 畸变

-1.48%

B.F.L 光学后焦

/

CRA 光线夹角

<8.2°

Size 尺寸

Φ14*14.86mm

Filter Size 滤镜尺寸

/

Mount 接口

M12

Weight 重量

8g
