Current:Home > Products - 1/1.7" 1/1.8" Low distortion lens - SND1628-5M ( 16mm ) 1/1.8"

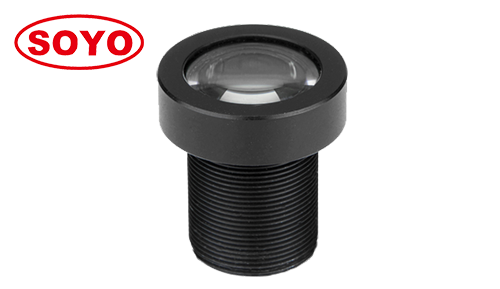

Product name:SND1628-5M ( 16mm ) 1/1.8"
Product description:


16mm 1/1.8" 5.0 Megapixel Lenses M12 S-mount Machine Vision FA <0.1% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens Optics

  • High resolution :       5 megapixel covering all 5MP & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera
  • Low distortion :        <0.1% super low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, UAV, scanner, sports DV, machine vision etc.



    Model 型号

    SND1628-5M

    Resolution 像素

    5.0 Megapixel

    Max image 像高

    /

    Format 靶面

    1/1.8"

    Focal Length 焦距

    16mm

    Aperture (Close) 光圈

    F2.8 Fixed Iris

    Angle of View (°)

    DxHxV 视场角

    1/1.8"

    30.3*24.4*18.4

    1/2"

    /

    1/2.5"

    /

    M.O.D 最近物距

    0.1m

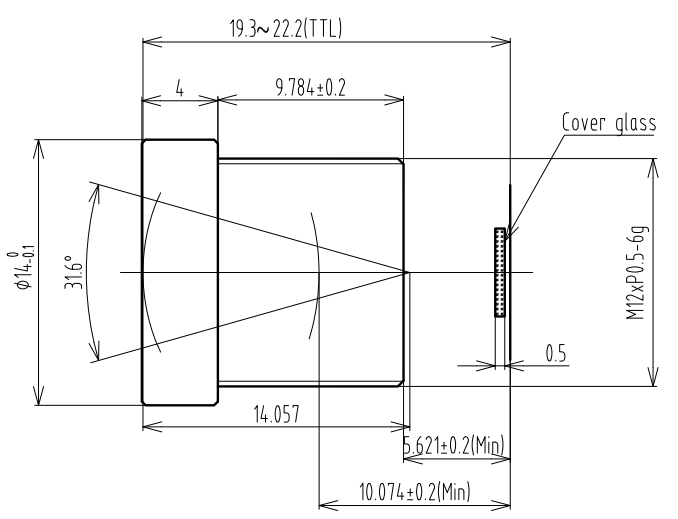

    Size 尺寸

    Φ14*13.7mm

    T.T.L 光学总长

    19.3mm

    Distortion TV 畸变

    <0.1%

    Mount 接口

    M12

    Weight 重量

    8g
