Current:Home > Products - 1/1.7" 1/1.8" Low distortion lens - SND1228-5M ( 12mm ) 1/1.8"

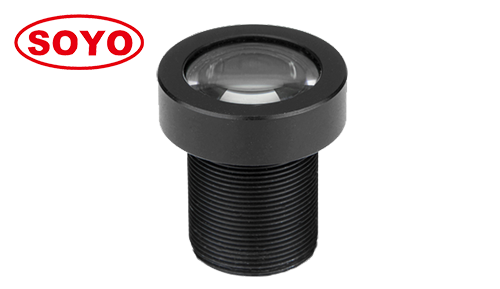

Product name:SND1228-5M ( 12mm ) 1/1.8"
Product description:


12mm 1/1.8" 5.0 Megapixel Lenses M12 S-mount Machine Vision FA <0.2% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens

  • High resolution :       5 megapixel covering all 5MP & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera
  • Low distortion :        <0.2% super low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, UAV, scanner, sports DV, machine vision.



    Model 型号

    SND1228-5M

    Resolution 解像力

    5.0 Megapixel

    Max image 像高

    /

    Format 靶面

    1/1.8"

    Focal Length 焦距

    12mm

    Aperture (Close) 光圈

    F2.8 Fixed Iris

    Angle of View (°) DxHxV

    视场角

    1/1.8"

    40.5*32.8*24.5

    1/2"

    /

    1/2.5"

    /

    M.O.D 最近物距

    0.1m

    Size 尺寸

    Φ15*19.5mm

    TTL 光学总长

    25.4

    Distortion 畸变

    <0.2%

    Mount 接口

    M12

    Weight 重量

    8g
