Current:Home > Products - 1/1.7" 1/1.8" Low distortion lens - SND0828-5M ( 8mm ) 1/1.8"

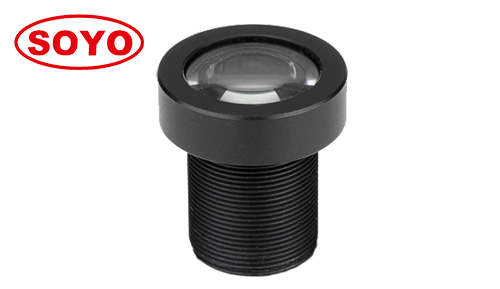

Product name:SND0828-5M ( 8mm ) 1/1.8"
Product description:


8.0mm 1/1.8" 5.0 Megapixel Lenses M12 S-mount Machine Vision FA <0.3% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens

  • High resolution :       5 megapixel covering all 5MP & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera
  • Low distortion :         <0.3% super low distortion
  • B.F.L/M.F.L :             9.36mm / 5.96mm
  • C.R.A :                     <1
  • Illumination:              >60%
  • Small size:               Small size disign makes it various application
  • Application :            Video converference, UAV, scanner, sports DV, machine vision.


    Model 型号

    SND0828-5M

    Resolution 解像力

    5.0 Megapixel

    Max image 像高

    >Φ9.2

    Format 靶面

    1/1.8"

    Focal Length 焦距

    8.0mm

    Aperture (Close) 光圈

    F2.8 Fixed Iris

    Angle of View (°)

    DxHxV

    1/1.8"

    56.8*47*35.6

    1/2"

    /

    1/2.5"

    /

    M.O.D 最近物距

    0.1m

    Size 尺寸

    Φ17*19mm

    T.T.L 光学总长

    24.9mm

    Distortion TV 畸变

    <0.3%

    Mount 接口

    M12

    Weight 重量

    8g
