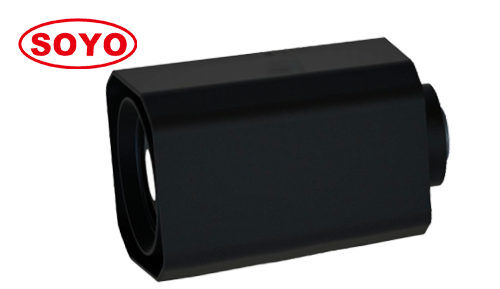

Product name:S11MZ28128PIR-12M(28-128mm) 1.1"
Product description:


28-128mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV  Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz 全球超高性价比大靶面、6K高像素、短焦距电动变焦镜头P光圈适用于短距离监控、识别等


PDF Datasheet : S11MZ28128PIR-12M


  • High resolution:        12 megapixel covering 4K, 1080P
  • Suitable F. length:     28-128mm making up short distance surveillance.
  • Big aperture:             F2.5 suitable for dark vision
  • Large format:            1.1" large format covering all 1",1/1.7",1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            P-iris & 3 motors, DC iris for option
  • Application:            Highway,train, industry, power station, city surveillance

Model 型号

S11MZ28128PIR-12M

Resolution 像素

12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1.1"

Focal Length 焦距

28-128mm

Aperture (Close/360) 光圈

F2.5 P-Iris

Angle of View (°) 视场角

1.1" IMX428

W: 32.3*26.5*18.1  T: 8.5*7.1*4.9

1" IMX305

W: 29.5*25.9*13.6  T: 7.8*6.9*3,7

1/1.2" IMX485

W: 23.5*20.4*11.4  T: 6.3*5.5*3.1

M.O.D 最近物距

3m(W) ~ 5m (T)

Distortion 畸变

-4.3%-1.7%@1.1”; -2.1%-0.9%@1/1.2”

Relative illumination 照度

42%@Φ12.8mm (W);40% Φ12.8mm (T)

C.R.A 主光线夹角

1.9° Tele;3.0° Wide

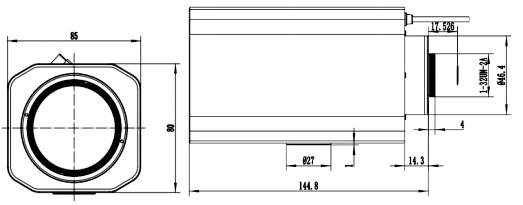

Dimension 尺寸

Φ80*85*144.8mm

B.F.L 光学后焦

12.02mm

M.F.L 机械后焦

13.526mm

Mount 接口

C

Weight 重量

500g

Relative Illum 照度

45% Wide Φ8.8;40% Tele Φ8.8

Character 特性

Coating 400~900nm;-30°~+70°
