Current:Home > Products - 6K 12Megapixel Zoom Lenses - SMZ0727IR-10M (7-27mm) 1/1.7"

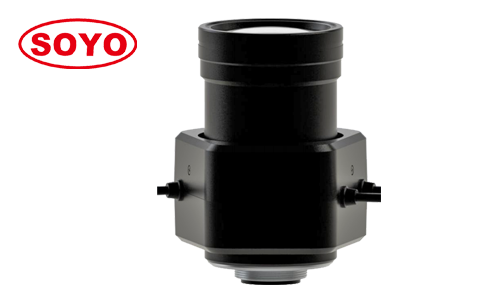

Product name:SMZ0727IR-10M (7-27mm) 1/1.7"
Product description:


7-27mm 1/1.7" 6K Megapixel Motorized Zoom Lenses CCTV Camera ITS Industrial Surveillance Highspeed Way Outside River Building Square Forest C/CS Lens

  • High resolution:        6K megapixel cover 10MP, 4K, 5MP
  • Suitable F. length:    7-27mm making up short distance surveillance.
  • Big aperture:             F1.4 suitable for dark vision
  • Large format:            1/1.7" large format covering 1/1.8", 1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            DC iris ( P-iris optional )
  • Application:             Highway,train, industry, power station, city surveillance.



Model 型号

SMZ0727IR-10M

Resolution 像素

Support 12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.7"

Focal Length 焦距

7-27mm

Aperture (Close/360) 光圈

F1.4 DC Iris ( P-iris optional )

Angle of View (°)

视场角DxHxV

1/1.7"

65*53*42.2

1/1.8"

61*51*34.2

1/2"

55*44.3*33.4

M.O.D 最近物距

1.5m

Distortion 畸变

-8.6%~4.9%

C.R.A 主光线夹角

0.3° Wide; 0.2° Tele

Dimension 尺寸mm

Φ50*85mm

B.F.L 光学后焦

7.74~9.88mm

M.F.L 机械后焦

7.23~9.38mm

Mount 接口

CS

Weight 重量

200g

Marks 备注

-30°~+70°

Character 特性

Coating 400~900nm
