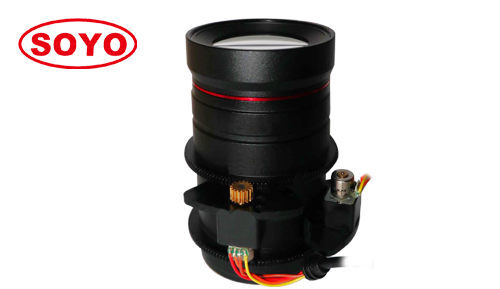

Product name:SMZ1050IR-10M ( 10-50mm ) 1/1.7"
Product description:


10-50mm 1/1.7" 6K Megapixel Motorized Zoom Lenses CCTV Camera Lens ITS Industrial Use DC P-iris Optional

  • High resolution:        6K megapixel cover 4K, 5MP, 1080P
  • Suitable F. length:    10-50mm making up short distance surveillance.
  • Big aperture:             F1.4 suitable for dark vision
  • Large format:            1/1.7" large format covering 1/1.8", 1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            P-iris & DC iris for option
  • Application:             Highway,train, industry, power station, city surveillance.

Model 型号

SMZ1050IR-10M

Resolution 像素

Support 12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.7"

Focal Length 焦距

10-50mm

Aperture (Close/360) 光圈

F1.4 DC Iris ( P-iris optional )

Angle of View (°)

视场角DxHxV

1/1.7"

47*37*27.2

1/1.8"

44.2*38.1*21  (16:9)

1/2"

40*31.2*23.1

M.O.D 最近物距

1.5m

Distortion 畸变

-10.7%~0.07%

C.R.A 主光线夹角

0.16°

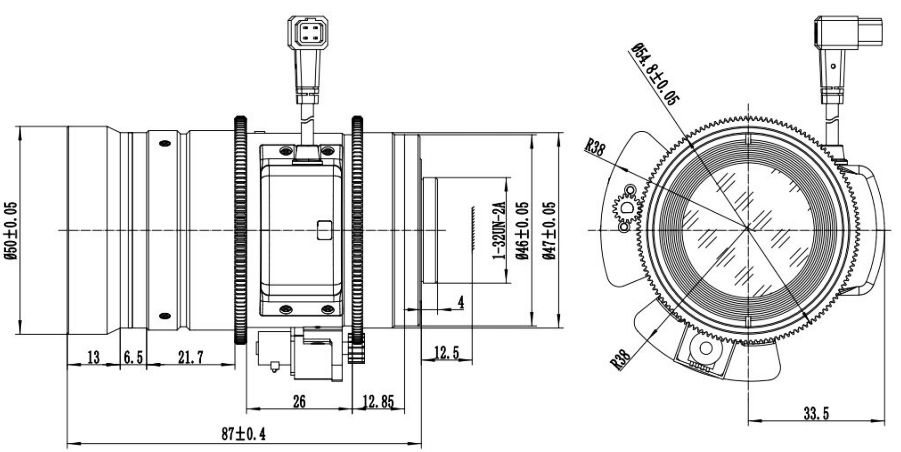

Dimension 尺寸

Φ50*87.4

B.F.L 光学后焦

>8.26mm

M.F.L 机械后焦

>6.95mm

Mount 接口

CS

Weight 重量

265g

Marks 备注

-30°~+7

Character 特性

Coating 400~900nm
