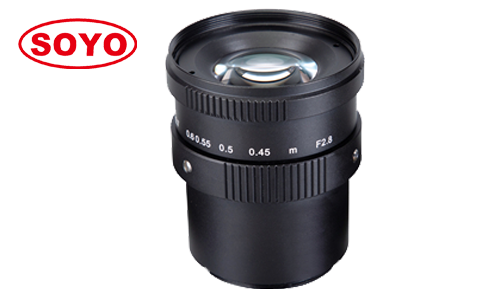

Product name:Color sort lenses 50mm M42
Product description:


50mm M42 5.5K 5μm Magnification 0.094x Color Sorter Machine Low Distortion Optical -0.61% ( TV Distortion -0.2% ) Machine Vision Factory Automation Camera Lenses On Grain, Mine, Tea, Stone Selection For Bhuler, Meyer, Taiho 色选机用高清照相机镜头50mm比如粮食,茶叶,矿物等筛选

* Focal length : 50mm 焦距

* Mount type :  M42*1 接口

* Pixel Szie :     5.25*5.25μm 像素尺寸
* Image height :  φ30mm

* Application :    Color sorting on grain, mine, tea, stone ... 粮食、矿物、茶叶等色选








Model 型号

SPH5028

Sensor size 像面规格

5400(H)*3(V) / H28.35*V0.016*D28.35mm

Pixel size 像圆尺寸

5.25*5.25μm

Focal Length 焦距

50mm

Aperture 光圈

F2.8 Manual Iris

Illumination 相对照度

>95.5%

Object distance 物象距离

640mm

Magnification 倍率

0.094x

W.D 工作距离

WD574mm; Optimal 600~700mm

Dimension 尺寸

Φ42*36.21mm

Distortion Optical 光学畸变

-0.61%

Screw filter 滤镜尺寸

M52*P0.75-7H

Mount 接口

M42*1

Weight 重量

180g
