Current:Home > Products - Line Scan Lenses - 100MP SLS8035F-100M (3.1μm 80mm)

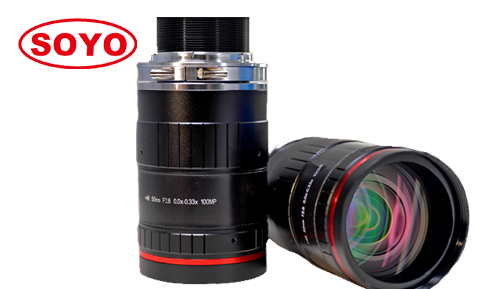

Product name:100MP SLS8035F-100M (3.1μm 80mm)
Product description:

100 Megapixel Line Scan Lenses Φ46 3.1μm 80mm <-0.16% Low Distortion Machine Vision Factory Automation Positioning Measurement China Camera Optical CCTV Optical Lens 4K 8K

High resolution :       3.1μm~5μm 8K 100Megapixel top high

Large format:           Φ46
Low distortion :         Low TV distortion <-0.16%

Application :             Automation, machine vision, medical, life science, measurement.

Model 型号

SLS8028F-100M  |  SLS8028V-100M

Format 靶面

Φ46mm ( Full size )

Resolution 像素

100Megapixel ( Pixel size 3.1μm )

Focal Length 焦距

80mm

Aperture (Close) 光圈

F3.5~22 Manual iris

FOV 视野

28*22.6*15.2

Distortion TV 畸变

-0.16% ;  -0.04% @ 200~400mm MOD

MOD FOV 最近物距视野

-88.776*-59.27mm

M.O.D 最近物距

0.25m

Filter size 滤镜尺寸

M62*0.75

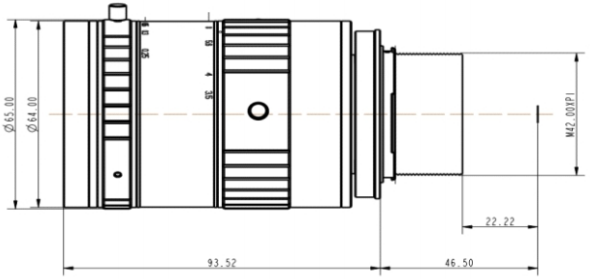

Size 尺寸

Φ65*93.52mm

Mount 接口

F / V ( optional )

Weight 重量

595g

Temperature 工作温度

-10~50°C

Marks 备注

3.1μm ~ 5μm 8K well matched
