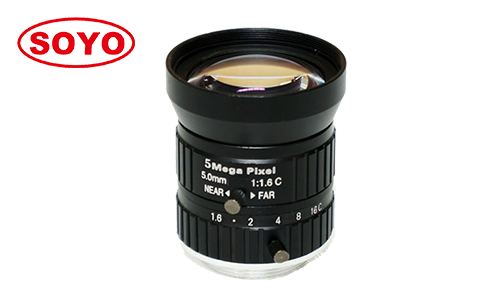

5mm 1/1.7" 5MP Machine Vision FA <2.3% Low Distortion Industrial Recognition 4K AI Sort Camera C/CS Megapixel Lenses
-
High resolution : 5.0 megapixel cover 5MP, 3MP & 1080P
-
Large format: 1/1.7" size covering 1/1.7", 1/1.8", 1/2" camera
-
Big aperture : F1.6 big aperture makes imaging far better
-
Low distortion : 2.3% low distortion use machine vision ITS
-
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model 型号
|
SMV0516-5M
|
Resolution 像素
|
5.0 Megapixel
|
Magnification 倍率
|
|
Format (inch) 靶面
|
1/1.7"
|
Focal Length (mm) 焦距
|
5.0mm
|
Aperture (Close) 光圈
|
F1.6 Manual Iris
|
Angle of View (°) DxHxV
|
1"
|
|
1/1.7"
|
72.6*60.63*47
|
1/2"
|
|
M.O.D (m) 最近物距
|
0.15m
|

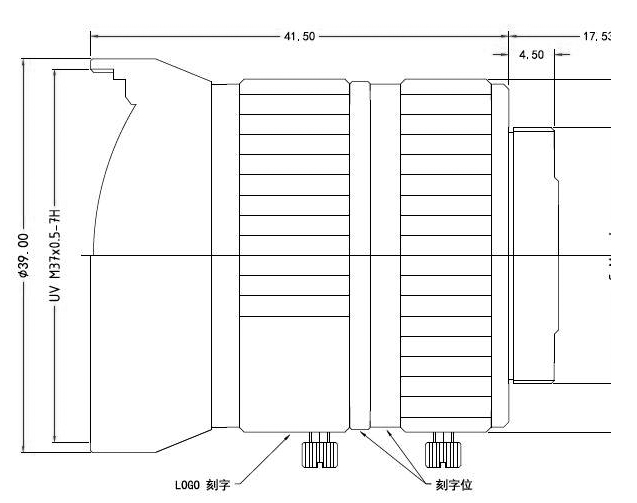

Size 尺寸
|
Φ39*41.5
|
Screw filter (mm) 滤镜尺寸
|
|
Distortion 畸变
|
<2.3%
|
Mount 接口
|
C
|
Weight (g) 重量
|
150g
|
|
