Current:Home > Products - Manual Iris - Megapixel Lens - SVM3818MIR-12M ( 3.8-18mm ) 1/1.7"

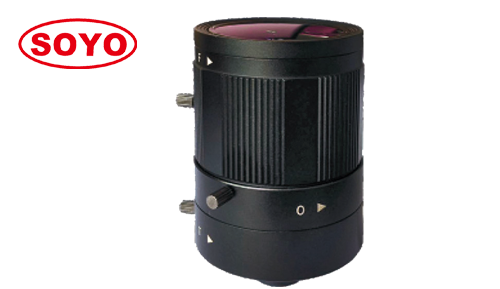

Product name:SVM3818MIR-12M ( 3.8-18mm ) 1/1.7"
Product description:


3.8-18mm 1/1.7" 12.0 Megapixel Lenses Manual Iris Varifocal CCTV Lens Wide Angle Security Surveillance Camera Optical Face Recognition Smart City Indoor/Outdoor CS Mount China Video Optics Parking Entry/exit


  • High resolution :     12megapixel
  • Large format :        1/1.7" covering 1/1.7"
  • Big aperture :          F1.4 makes dark imaging low noisy
  • IR correction :         24h day & night vision
  • Nice design :           Metal body glass element makes temperature resistance
  • Application :            All bldg., school, room, bank, traffic, highway etc. all area.

Model 型号

SVM3818MIR-12M

Resolution 像素

12 Megapixel

IR Correction 日夜

IR

Format 靶面

1/1.7" (Φ9.5mm)

Focal Length焦距

3.8-18mm

Aperture (Close/360) 光圈

F1.4 Manual Iris

Angle of View (°) DxHxV 视场角

1/1.7"

W: 132*109*57  T: 35*31*17

Distortion 畸变

-75% (W) ~ -3.1%(T)

CRA 主光线夹角

13.2°~9.7°

Illumination 照度

40%(W) ~ 77% (T)

M.O.D最近物距

0.5m~1.5m

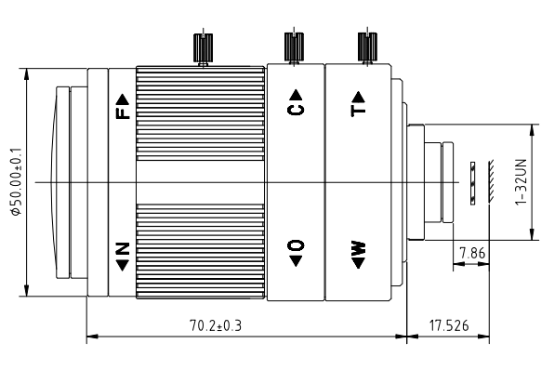

Dimension 尺寸

Φ50*70.2mm

M.B.L 机械后焦

7.86mm

Mount 接口

C

Weight重量

242g

Marks备注

Coating 430~650nm / 850~950nm

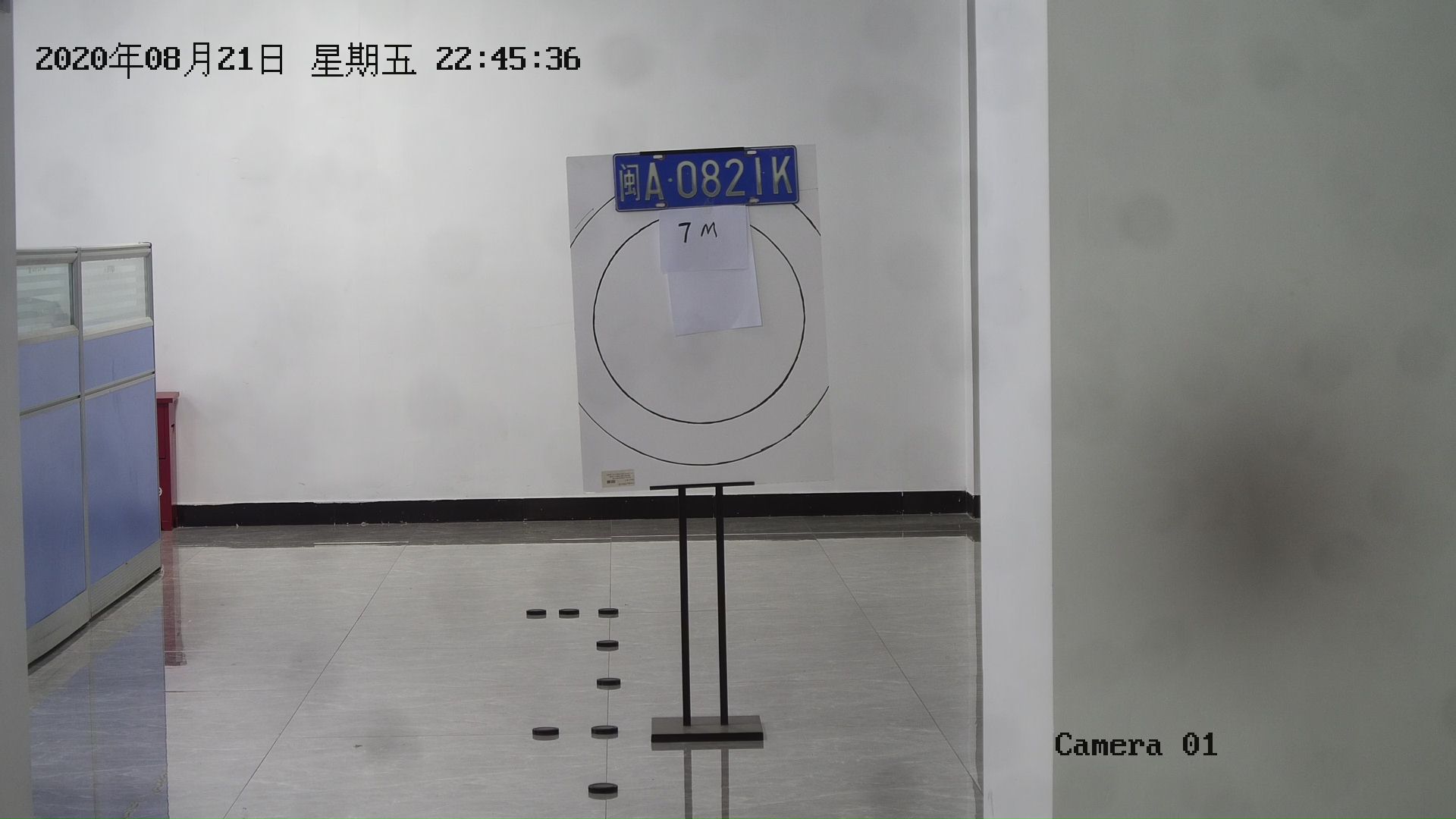

Capture of 3.8-18mm 12Megapixel on Hikvision 1080P Camera 1/1.8", 7meter, 18mm Focal length, for LPR 车牌识别7米长焦18mm焦距 ( Enlarge to see details )
