Current：Home > Products - Manual Iris - Megapixel Lens - SVM1050IR-5M ( 10-50mm ) 1/1.7"

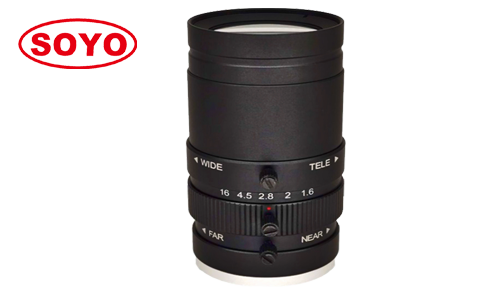

Product name：SVM1050IR-5M ( 10-50mm ) 1/1.7"
Product description：


10-50mm 1/1.7" 5.0 Megapixel Lenses Manual Iris Varifocal CCTV Lens Security Surveillance Camera Optical Face Recognition LPR Liscense Plate C/CS Mount China Zoom Video Optics

  • High resolution:       5 megapixel can cover 1080P
  • Wide focal length:   10-50mm can instead 12-36mm lens.
  • Big aperture:           F1.6 suitable for dark vision
  • Large format:          1/1.7" can cover all 1/1.7",1/1.8",1/2",1/2.5"
  • Application:           Smart city, traffic, exit, metrol, ITS, highway.


Model 型号

SVM1050IR-5M

Resolution 像素

5.0 Megapixel

Format 靶面

1/1.7"

Focal Length 焦距

10-50mm

IR day & night 紅外

IR

Aperture (close) 光圈

F1.6 Manual Iris

Angle of View (°) 视场角

1/1.7" (4:3)

46.2*36.3*26.8

1/1.8" (16:9)

43.5*37.5*20.6

1/2" (4:3)

39*31*23

Relative illumination 照度

/

M.O.D 最近物距

1.5m

Distortion 畸变

-10.4%

CRA 主光线夹角

0.16 (W): 0 (T)

B.F.L 光学后焦

>8.26mm

M.F.L 机械后焦

>6.95mm

T.T.L 光学总长

<96mm

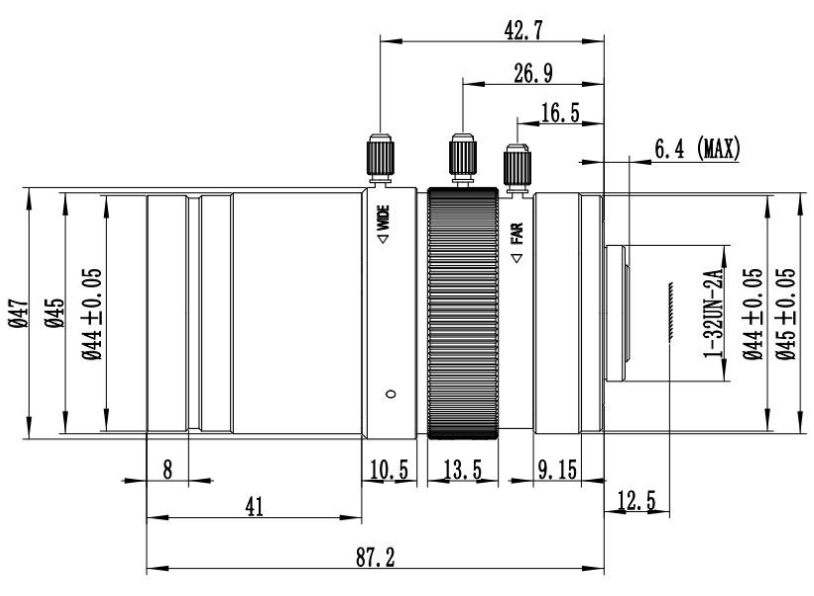

Size 尺寸

Φ47x87.2mm

Mount 接口

CS

Weight 重量

265g

Marks 备注

Coating 400~900nm IR
