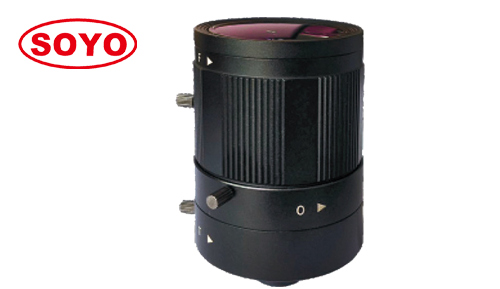

3.8-18mm 1/1.8" 3.0Megapixel Lenses Manual Iris Security Surveillance Camera CCTV Lens Safe City ITS IR Day Night f1.6 C Mount China Top Level Optics
-
High resolution : 3.0 megapixel cover all 3MP,1080P, 720P
-
Large format : 1/1.8" size covering 1/2", 1/2.5", 1/2.7", 1/3"
-
IR correction : 24h day & night vision
-
Nice design : Metal body makes temperature resistance better
-
Application : Building, school, room, bank, traffic, highway ITS short distance
-
应用场合： 适用于楼宇、银行、交通等室内外短距离监控
|
Model 型号 모델
|
SVM3818XIR-3M
|
|
Resolution 像素 해결
|
3.0 Megapixel
|
|
Format 靶面 센서 크기
|
1/1.8"
|
|
Focal Length 焦距 초점 거리
|
3.8-18mm
|
|
IR Correction 红外 적외선
|
IR
|
|
Aperture (Close) 光圈 구멍
|
F1.6 Manual iris
|
|
Angle of View (°)
视场角 시야
|
1/1.8"
|
160*125*62 (16:9)
|
|
1/1.8"
|
160*114*80 (4:3)
|
|
1/2.7"
|
/
|
|
M.O.D 最近物距 가장 가까운 물체 거리
|
0.2m
|
|
Distortion 畸变 왜곡
|
-81.4% ~ -2.84%
|
|

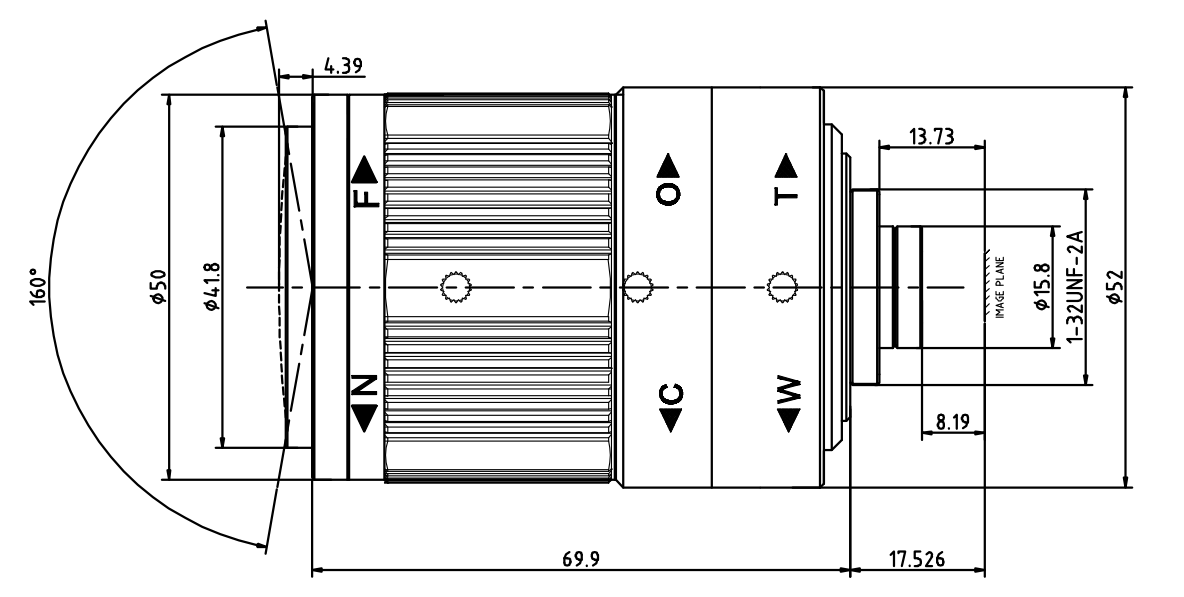

Size 尺寸 크기
|
Φ50*72.4mm
|
|
BFL 光学后焦 광학 백 포커스
|
8.8~20.9mm
|
|
T.T.L 光学总长 광학 총 길이
|
91.7mm
|
|
Mount 接口 상호 작용
|
C
|
|
Weight 重量 무게
|
530g
|
|
Marks 备注 주목
|
X-QF
|
|
