Current:Home > Products - Manual Iris - Megapixel Lens - SVMV0612-3M ( 6-12mm ) 1/1.8"

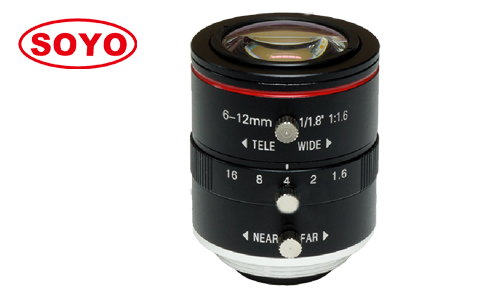

Product name:SVMV0612-3M ( 6-12mm ) 1/1.8"
Product description:


6-12mm 1/1.8" 3.0
 Megapixel Lenses Manual Iris Varifocal CCTV Lens Security Surveillance Camera Optical Industrial Qr Code Scan C/CS Mount China Zoom Video Optics Supplier


  • High resolution :      3.0 megapixel covering 3MP & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2" camera
  • Big aperture :           F1.6 big aperture makes imaging far better
  • Low distortion :        <0.1% low distortion use machine vision FA automatic
  • Application :             Biochemical, surveillance, FA, face recognition etc.

    Model 型号

    SVMV0612-3M

    Resolution 像素

    3.0 Megapixel

    Format 靶面

    1/1.8"

    Focal Length 焦距

    6-12mm

    B.F.L 后焦

    /

    Aperture  (Close) 光圈

    F1.6 Manual Iris

    Angle of View (°)

    2/3"

    /

    视场角

    1/1.8"

    65*51

    H*V 水平*垂直

    1/2"

    /

    M.O.D 最近物距

    0.3m

    Distortion 畸变

    < 0.1%

    Filter Screw 螺纹尺寸

    /

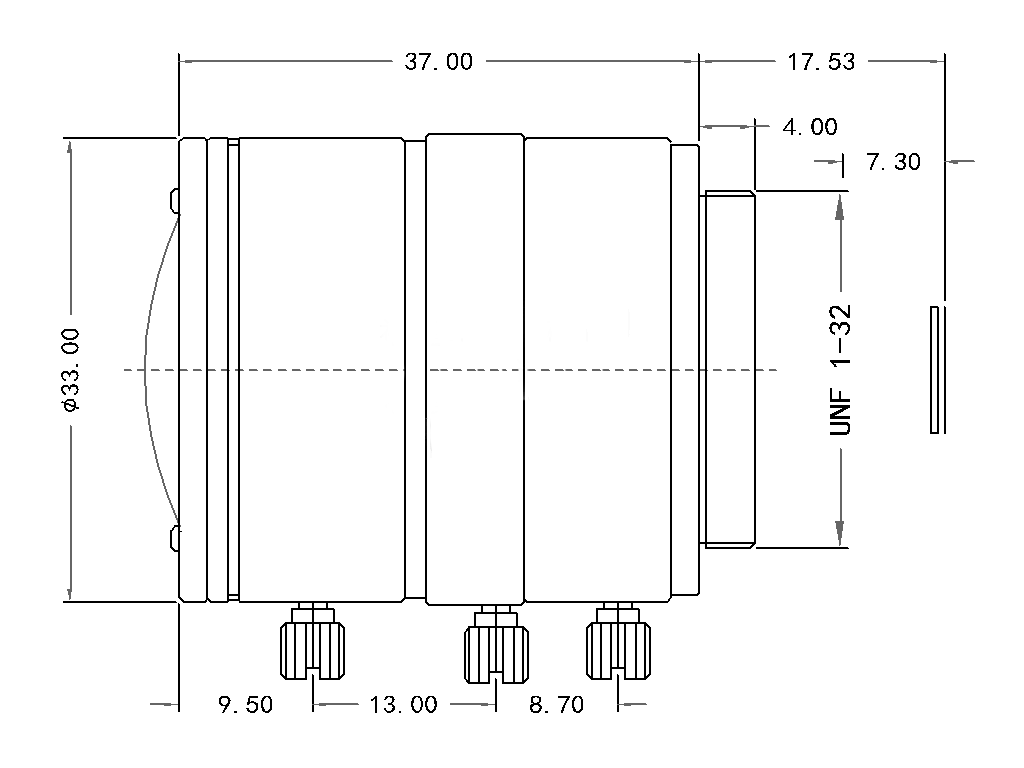

    Size 尺寸

    Φ33*37mm

    T.T.L 光学总长

    /

    Mount 接口

    C

    Weight 重量

    73g

    Marks 备注
