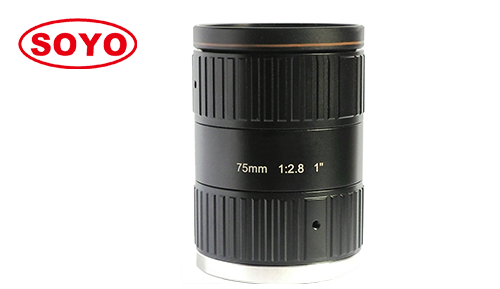

Product name:S1MV7528-10M ( 75mm ) 1"
Product description:

75mm 1" 10Mp Megapixel Lenses Machine Vision FA Magnification -0.1781x <-0.01% Low Distortion Industrial Automation Positioning Measurement Face Recognition 4K Camera C Mount China Optics Lentz

  • High resolution :     10 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        0.75% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



    Model 型号

    S1MV7528-10M

    Resolution 像素

    10 Megapixel

    Format 靶面

    1" (16mm)

    Focal Length 焦距

    75mm

    B.F.L 光学后焦

    23.15mm

    Aperture  (Close) 光圈

    F2.8 Manual iris

    Angle of View (°)

    视场角 D*H*V

    1"

    12.5*10*7.3 | 89.2*72*54mm

    1/2"

    6.1*4.9*3.7 | 44.8*35.8*26.9mm

    1/3"

    4.6*3.7*2.8 | 33.6*26.7*20.2mm

    M.O.D 最近物距

    0.5m

    Distortion 畸变

    0.75%@1"; 0.18%@1/2"; 0.11%@1/3"

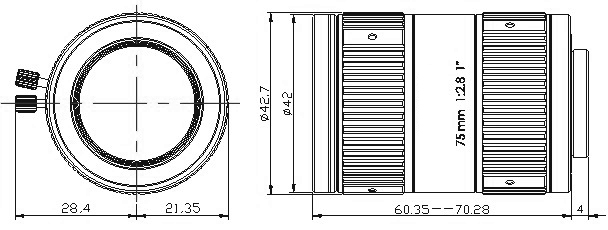

    Size 尺寸

    Φ42.7*60.35mm

    Filter size 滤镜螺纹

    M39*0.5mm

    T.T.L 光学总长

    76.75mm

    Mount 接口

    C

    Weight 重量

    187g

    Marks 备注

    Be used for 10MP camera 1000万
