Current:Home > Products - 1.1" 1" 10MP FA Lenses - S1MV2518-10M ( 25mm ) 1"
Product name:S1MV2518-10M ( 25mm ) 1"
Product description:

25mm 1" 10Mp Megapixel Lenses Machine Vision FA Magnification -0.1769x <-1.53% Low Distortion Industrial Automation Positioning Measurement Recognition 4K Camera Lens CCTV Lentz China Optics

  • High resolution :     10 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -1.53% low distortion use machine vision ITS
  • Magnification :         -0.1769x
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.

  • Model 型号

    S1MV2518-10M

    Resolution 像素

    10 Megapixel

    Format 靶面

    1"

    Focal Length  焦距

    25mm

    B.F.L 光学后焦

    12.68mm

    Aperture (Close) 光圈

    F1.8 Manual iris

    Angle of View (°)

    视场角 D*H*V

    1"

    36*29*22 | 92.3*73.3*55mm

    1/2"

    18.3*14.6*11 | 45.4*36.3*27.2mm

    1/2"

    13.7*11*8.2 | 34*27.2*20.4mm

    M.O.D 最近物距

    0.15m

    Distortion 畸变

    -1.53%@1"; -0.38%@1/2";-0.22%@1/3"

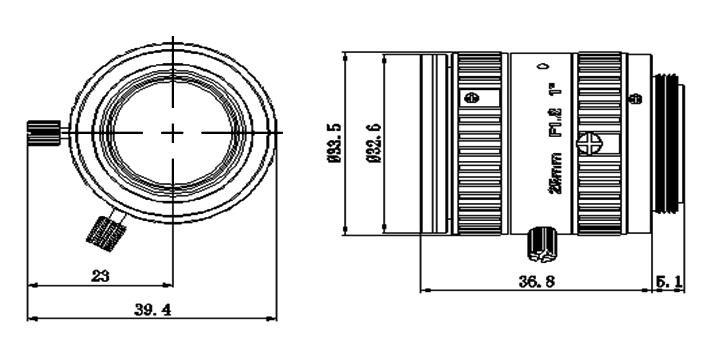

    Size 尺寸

    Φ33.5*36.8mm

    Filter size 滤镜螺纹

    M30.5*0.5mm

    T.T.L 光学总长

    48.94mm

    Mount 接口

    C

    Weight 重量

    87g

    Marks 备注

    Can be used for 10MP camera 可用1000万
