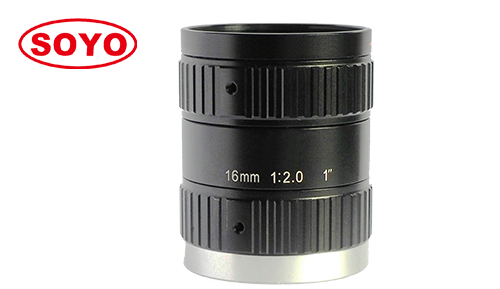

Product name:S1MV1620-10M ( 16mm ) 1"
Product description:

16mm 1" 10Mp Megapixel Lens Magnification 0.1468x Factory Automation Machine Vision FA <-2.22% Low Distortion Industrial Recognition 4K Camera C Lens

  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -2.22% low distortion use machine vision ITS
  • Magnification :         0.1468x
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



    Model 型号

    S1MV1620-10M

    Resolution 像素

    10 Megapixel

    Format 靶面

    1"

    Focal Length 焦距

    16mm

    B.F.L 光学后焦

    11.19mm

    Aperture (Close) 光圈

    F2.0 Manual iris

    Angle of View (°)

    视场角 D*H*V

    1"

    54*44*33.4 | 115.4*89*66mm

    1/2"

    28*22.5*17 | 55*44*33mm

    1/3"

    21.1*17*12.7 | 41*33*25mm

    M.O.D 最近物距

    0.1m

    Distortion 畸变

    -2.2%@1";-0.72%@1/2";-0.42%@1/3"

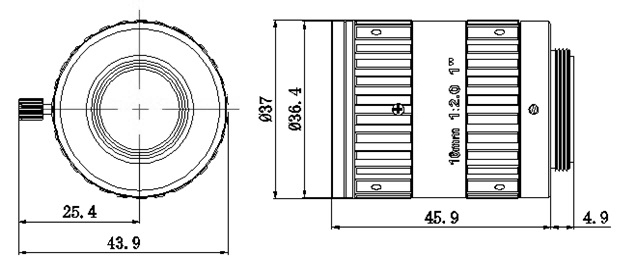

    Size 尺寸

    Φ37*45.9mm

    Filter size 滤镜螺纹

    M34*0.5

    T.T.L 光学总长

    59.78mm

    Mount 接口

    C

    Weight 重量

    151g

    Marks 备注

    Can be used for 10MP camera 可用1000万
