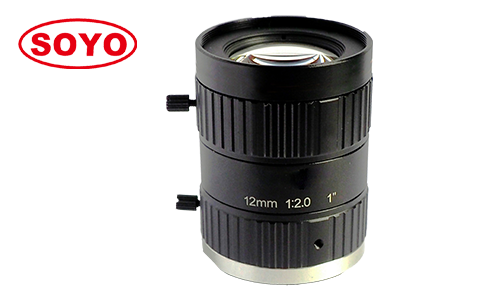

Product name:S1MV1220-10M ( 12mm ) 1"
Product description:

12mm 1" 10Mp Megapixel Lenses Machine Vision FA <-4.1% Low Distortion Industrial Recognition 4K Camera C Mount Manual Iris Lens

  • High resolution :     10 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -4.1% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.

  • Model 型号

    S1MV1220-10M

    Resolution 像素

    10 Megapixel

    Format  靶面

    1"

    Focal Length 焦距

    12mm

    B.F.L 光学后焦

    15.07mm

    Aperture  (Close) 光圈

    F2.0 Manual iris

    Angle of View (°)

    视场角 D*H*V

    1"

    70*61*44 | 70*61*44.3mm

    1/2"

    37.3*30*22.7 | 75*60*45mm

    1/3"

    28.2*23*17.1 | 56*45*34mm

    M.O.D 最近物距

    0.08m

    Distortion 畸变

    -4.1%@1"; -1.2%@1/2"; -0.74%@1/3"

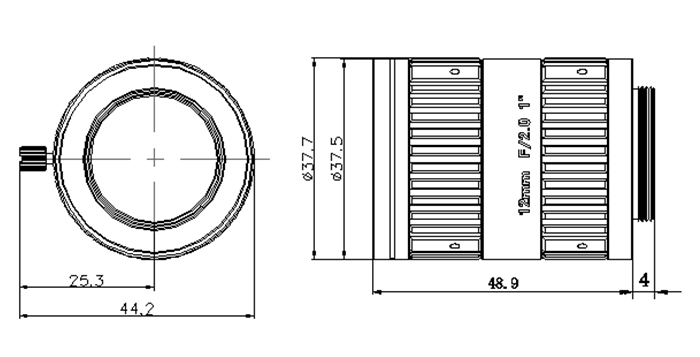

    Size 尺寸

    Φ37.7*48.9mm

    Filter size 滤镜螺纹

    M35*0.5

    T.T.L 光学总长

    /

    Mount 接口

    C

    Weight 重量

    186g

    Marks 备注

    Can be used for 10MP camera 可用1000万
