Current:Home > Products - 1.1" 1" 10MP FA Lenses - S1MV0818-10M ( 8mm ) 1"

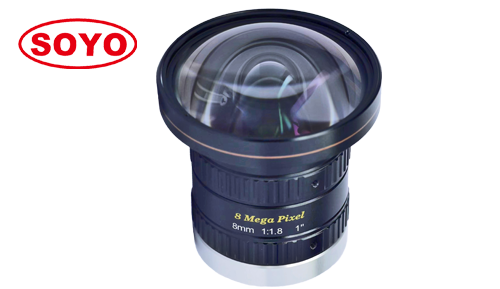

Product name:S1MV0818-10M ( 8mm ) 1"
Product description:

8mm 1" 10Mp Megapixel Machine Vision FA <-4.12% Low Distortion Industrial AI Computer Vision Positioning Measurement Recognition 4K Camera C Mount China Lens Optics

  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -4.12% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



    Model 型号

    S1MV0818-10M

    Resolution 像素

    10 Megapixel

    Format 靶面

    1"

    Focal Length 焦距

    8mm

    B.F.L 光学后焦

    /

    Aperture  (Close) 光圈

    F1.8 Manual iris

    Angle of View (°)

    视场角 D*H*V

    1"

    90*77*61.3

    2/3"

    69*57*44

    1/2"

    53*43*33

    M.O.D 最近物距

    0.3m

    Distortion 畸变

    -4.12%

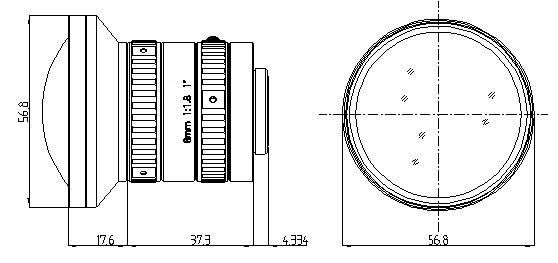

    Size 尺寸

    Φ56.8*54.9mm

    Filter size 滤镜螺纹

    /

    Mount 接口

    C

    Weight 重量

    76g

    Marks 备注

    Can be used for 10MP camera 可用1000万
