Current:Home > Products - 12 Megapixel CCTV Lenses - SVD1050MIR-12M ( 10-50mm ) 1/1.7"
Product name:SVD1050MIR-12M ( 10-50mm ) 1/1.7"
Product description:


1/1.7" 10-50mm 12 Megapixel Varifocal Lenses F1.3 DC Auto iris C Mount CCTV Lens Security Camera Optics Safe City ITS Exit / Entrance IR China Optics 远距离视频监控、道路交通、人脸识别用镜头

PDF Download :  SVD1050MIR-12M

  • High resolution:      12 megapixel high resolution covering 4K, 1080P
  • Long focal length:   10-50mm long focal length
  • Big aperture:           F1.3 support dark vision
  • Large format:         1/1.7" can cover all 1/1.8"
  • IR correction:          Day & night 24h surveillance
  • Application:           Surveilance, ITS, LPR, face recognition.


    Model 型号

    SVD1050MIR-12M

    Resolution 像素

    12 Megapixel

    IR Correction 日夜

    IR

    Format 靶面

    1/1.7"

    Focal Length焦距

    10-50mm

    Aperture (Close/360) 光圈

    F1.3  DC Iris

    Angle of View (°)

    DxHxV 视场角

    1/1.7"

    W 48.6*41.8*23.3 | T 11.7*10*5.7

    1/1.8"

    W 44.8*38.6*21.4 | 10.8*9.4*5.3

    Optical Distortion 光学畸变

    -9.95% ~ -1.29%

    CRA 主光线夹角

    4.1°(1/1.2"); 4.5°(1/1.8")

    M.O.D最近物距

    W 0.5~1.5m T

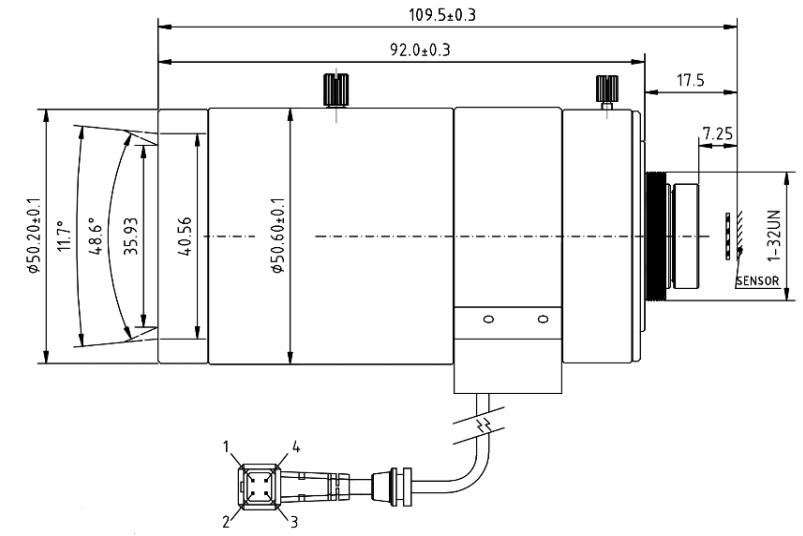

    Dimension 尺寸

    Φ50.2*92mm

    M.B.L 机械后焦

    7.25mm

    Mount 接口

    C

    Weight重量

    334g

    Marks备注

    -20°~+70°; 430~950nm
