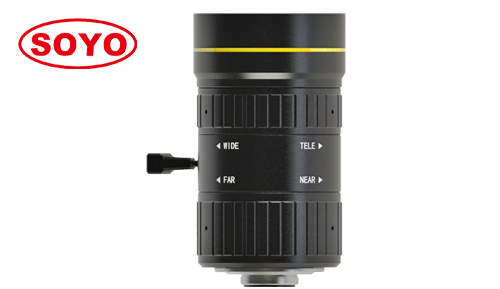

Product name:S11VP1540IR-12M ( 15-40mm ) 1.1"
Product description:


1.1" 15-40mm 12Megapixel Lenses Varifocal CCTV Lens Security Surveillance Camera Optics Safe City ITS Industrial IR Day Night C Mount Made in China

  • High resolution:      12 megapixel can cover 4K 高像素
  • Wide focal length:  15-40mm can instead 12-36mm lens 焦距宽
  • Big aperture:           F1.5 suitable for dark vision 大光圈
  • Large format:          1.1" can cover all 1",1/1.7",1/1.8",1/2" 超大靶面
  • Low distortion:         Fit for CCTV & ITS need low distortion 低畸变
  • Variety iris:              P-iris P光圈
  • Application:           Smart city, exit, metrol, ITS, highway, forest, river, mountain etc.

Model 型号

S11VP1540IR-12M

Resolution 像素

12 Megapixel

IR Correction 日夜

IR

Format 靶面

1.1" (Φ17.6mm)

Focal Length 焦距

15-40mm

Aperture (Close/360) 光圈

F1.5 P-Iris

Angle of View (°)

DxHxV 视场角

1.1"

W 60.3*50.1*34.4 / 25.3*21.2*14.7 T

1"

W 55.7*49*25.9 / 23.5*20.7*11.1 T

1/1.2"

W 44.4*38.7*21.7 / 18.8*16.5*9.3 T

Distortion 畸变

-9% ~ 1.2%(1.1); -5.4% ~ 0.3%(1/1.2)

CRA 主光线夹角

6.1°(1.1"); 6.3°(1/1.2")

M.O.D 最近物距

W 1.5m ~ T 2.5m

B.F.L 光学后焦

12.48mm

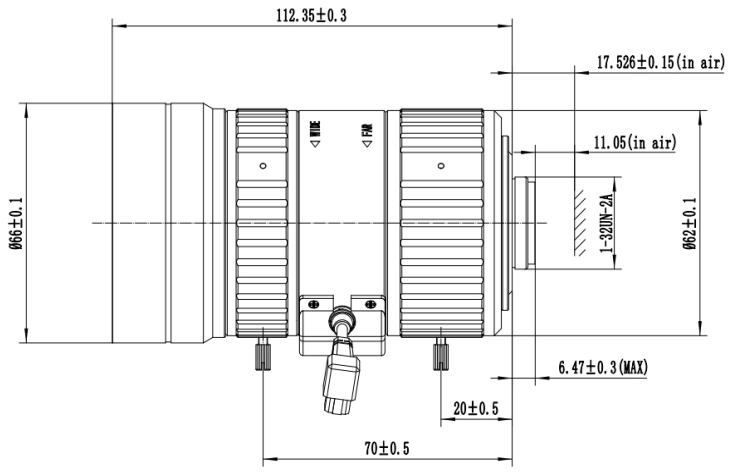

Dimension 尺寸

Φ66*112.35mm

Illumination 相对照度

W 44% ; T 43%

Mount 接口

C (17.526mm)

Weight 重量

482g

Marks 备注

-30°~+70°; 400~900nm
