Current:Home > Products - 12 Megapixel CCTV Lenses - SVP1872IRF-12M ( 18-72mm ) 1/1.2"

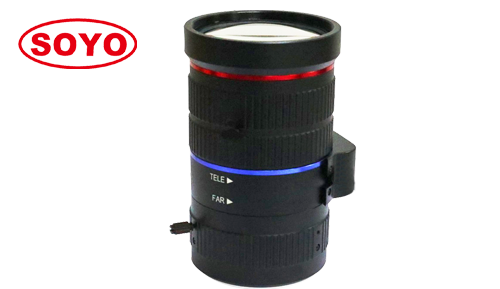

Product name:SVP1872IRF-12M ( 18-72mm ) 1/1.2"
Product description:


1/1.2" 18-72mm 12Megapixel Vari-focal Lenses F1.3 P-iris Big Aperture Surveillance Camera ITS Face Recognition Liscence Plate China Optical CS Mount CCTV Lens


  • High resolution:       12 megapixel cover 4K 高像素
  • Suitable E.F.L:         Covering 10-50mm, 5-50mm, 15-50mm, 12-50mm 宽焦距
  • Big aperture:           F1.3 P-iris suitable for dark vision P光圈
  • Large format:          1/1.2" can cover all 2/3", 1/1.8",1/2" 大靶面
  • IR correction:          24h day & night vision 红外日夜矫正
  • Application:           All bldg., ITS, exit, metrol, highway,toll gate.楼宇交通地铁收费站

Model 型号

SVP1872IRF-12M

Resolution 像素

12 Megapixel

IR Correction 日夜

IR

Format 靶面

1/1.2" (Φ12.8mm)

Focal Length 焦距

18-72mm

Aperture (Close/360) 光圈

F1.3 P-Iris ( DC/Manual customization )

Angle of View (°)

DxHxV 视场角

1/1.2"

37.5*32.1*17.9

2/3"

31.8*25.2*18.9

1/1.8"

25.5*22*12.4

Distortion 畸变

-7.5% ~ 0.8%(1/1.2); -3.4%~0.4%(1/1.8)

CRA 主光线夹角

4.1°(1/1.2"); 4.5°(1/1.8")

M.O.D (m) 最近物距

3m

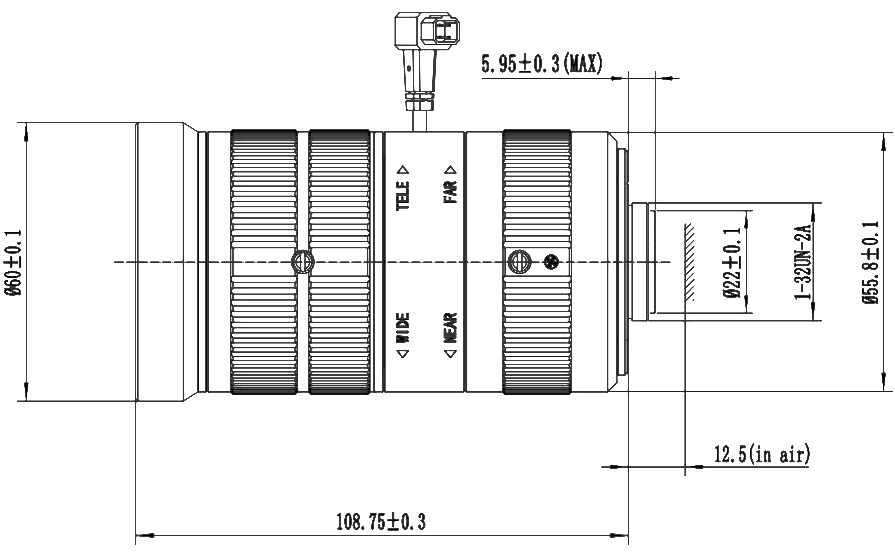

Dimension 尺寸

Φ60*108.75mm

Illumination 相对照度

42%

Mount 接口

CS

Weight 重量

482g

Marks 备注

-30°~+70°; 400~900nm
