Current：Home > Products - 12 Megapixel CCTV Lenses - SVD1575IR-12M ( 15-75mm ) 1/1.7"

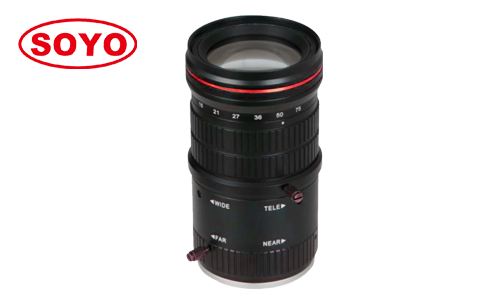

Product name：SVD1575IR-12M ( 15-75mm ) 1/1.7"
Product description：


1/1.7" 15-75mm 12 Megapixel Lenses CCTV Lens Surveillance Camera Lenses ITS LPR Liscence Plate Recognition China Optical C Mount


  • High resolution:       12 megapixel cover 4K 高像素
  • Wide focal length:   Covering 10-50mm, 5-50mm, 15-50mm, 12-50mm 宽焦距
  • Big aperture:           F1.5 suitable for dark vision 大光圈
  • Large format:          1/1.7" can cover all 1/1.8",1/2",1/2.5", 1/2.7" 大靶面
  • IR correction:          24h day & night vision 红外日夜矫正
  • Application:           All bldg., ITS, exit, metrol, highway,toll gate.楼宇交通地铁收费站

Model 型号

SVD1575IR-12M

Resolution 像素

12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.7"

Focal Length 焦距

15-75mm

Aperture (Close/360) 光圈

F1.5 DC Iris

Angle of View (°) 视场角

1/1.7" (16:9)

30.6*26.8*13.8

1/1.7" (4:3)

33*26*19.2

1/2"

28*22.2*16.5

M.O.D 最近物距

1.5m

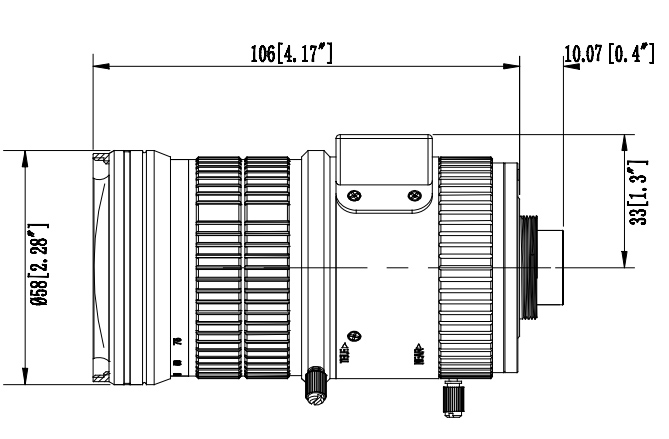

Dimension 尺寸

Φ58*116

Mount 接口

C

Weight 重量

465g

Marks 备注

-30°~+70°
