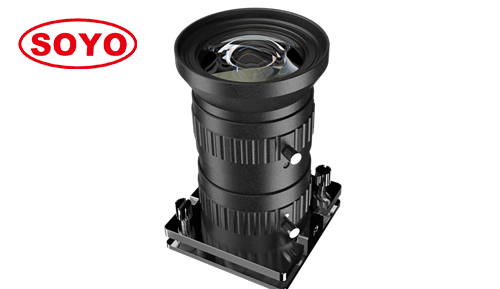

Product name:DOF Adjustable Scheimflug (16mm) 1.1"
Product description:

1.1" 12mm/16mm/25mm/35mm 20Megapixel Lenses Auto DOF ( Scheimflug ) Manual Iris Depth Of Field FA Machine Vision Industrial Camera Optical Imaging Low Distortion Positioning Measurement Inspection On Factory Automation AI Deep Learning C Mount China Optics
1. Unique design of Scheimpflug angle adjusting mechanism
2. Perfectly solved the DOF limitation ( see below image )
3. Support 1.1" camera
4. Resolution 20 Megapixel
5. Suitable for SMT, 3D detection and other industrial 4.0 applications





( DRAG THE PICTURE TO ENLARGE  )  :  LEFT SIDE " STANDARD " LENS |  RIGHT SIDE " DOF AJUSTABLE " LENS


Download by click RED model below


Model EFL Sensor Aperture TV Distortion MOD Mnt
SDOF1228-20M 12mm 1.1" f2.8-22 <0.5% 0.1m C
SDOF1628-20M 16mm 1.1" f2.8-22 <0.3% 0.1m C
SDOF2528-20M 25mm 1.1" f2.8-22 <0.1% 0.2m C
SDOF3528-20M 35mm 1.1" f2.8-22 <0.02% 0.2m C
