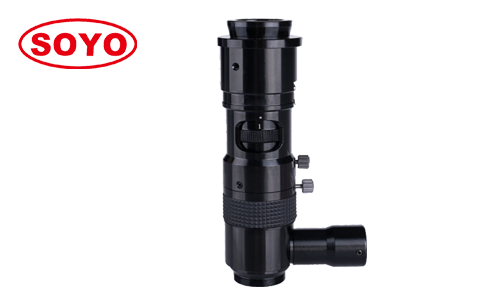

Product name:0.7x~4.5x Linear coaxial zoom lens 1"
Product description:


0.7x~4.5x 1" Coaxial Linear Zoom Telecentric Lenses 0.002%
Low Distortion Machine Vision FA Industrial Megapixel Lens Measurement Camera


  • High resolution :       3.8μm at 4.5x
  • Large format:           1" size covering 2/3", 1/2" camera
  • Magnification :          0.7x ~ 4.5x
  • Low distortion :         Low distortion 0.002% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, measurement.

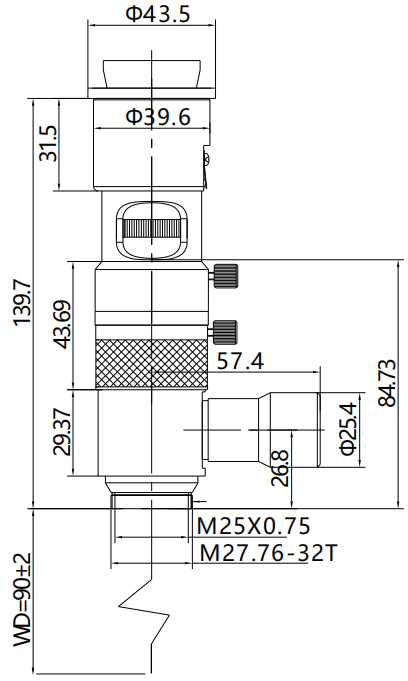

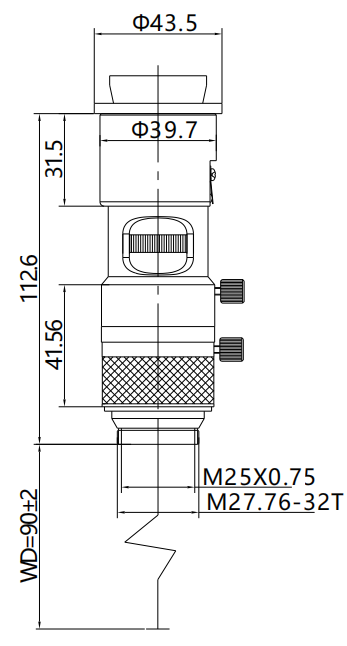

1.  Focus type Linear Zoom Lens               2.  Co-axial Focus type Linear zoom lens


Model 型 号

STZ0745C-M / STZ0745CF-M

Zoom range 放大

0.7x ~ 4.5x

Mag(x)倍率

0.7x

1.0x

2.0x

3.0x

4.0x

4.5x

Resolution 分辨率

11.2μm

9.6μm

6.5μm

4.9μm

4.0μm

3.8μm

Depth of field (mm)

2.4mm

1.3mm

0.4mm

0.2mm

0.1mm

0.1mm

F No.光圈

0.03

0.035

0.051

0.068

0.083

0.088

Distortion 畸变

0.04%

0.079%

0.07%

0.064%

0.004%

0.002%

Angle of view °

视场角 D*H*V

2/3"

21*17*12.5 / 3.25*2.6*1.95

1/2"

15.1*12.1*9.06 / 2.37*1.9*1.42

1/3"

11.3*9.1*6.8 / 1.8*1.42*1.1

WD 工作距

93 +/- 2mm

Format 靶面

1" (Φ16)

Mount 接口

C / F Mount

Temperature 温

+10 ~ 35°C

Humidity 湿

20~80% RH ( No Condensation )

Marks 备注

Focus function, coaxial function
