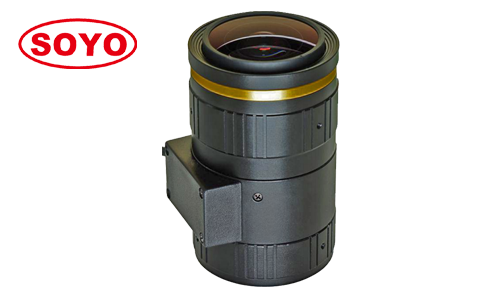

Product name：SVD3816IR-8MS ( 3.8-16mm ) 1/1.8"

Product description：

1/1.8" 3.8-16mm 8.0 Megapixel Varifocal Lenses Security Surveillance Camera CCTV Lens ITS Parking Face Recognition Smart City C/CS China Optics Lentz IR

High resolution: 8 megapixel cover 4K & 1080P
Wide focal length: Covering 3.8-16mm, 4-16mm, 4-12mm
Big aperture: F1.4 suitable for dark vision
Large format: 1/1.8" can cover all 1/1.8",1/2",1/2.5", 1/2.7"
IR correction: 24h day & night vision
Application: Parking, Surveillance, ITS, Recognition.

Model 型号		SVD3816IR-8M
Resolution 像素		8 Megapixel
IR Corrected 日夜		IR
Format 靶面		1/1.8"
Focal Length 焦距		3.8-16mm
Aperture (Close) 光圈		F1.4 DC Iris
Angle of View (°) 视场角	1/1.8"	W: 99.875.2 \| T: 75.218.6
B.F.L 光学后焦		/
M.F.L 机械后焦		/

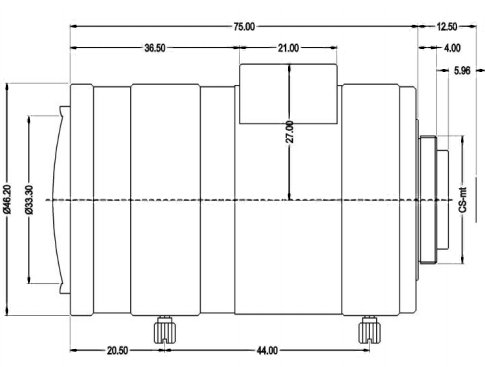

Size 尺寸		Φ46.2*75mm
T.T.L 光学总长		91.27mm
Mount 接口		CS
Weigh 重量		223g
Marks 备注		Element 11G
