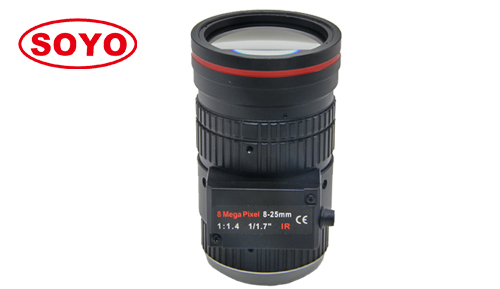

1/1.7" 8-25mm 8.0 Megapixel Lenses Varifocal Security Surveillance Camera Optical CCTV Lens Smart City ITS Face Recognition IR Day Night C/CS Mount China optics
-
High resolution: 8 megapixel cover 4K & 1080P
-
Wide focal length: Covering 3.6-18mm, 3.8-16mm, 4-16mm, 4-12mm
-
Big aperture: F1.4 suitable for dark vision
-
Large format: 1/1.7" can cover all 1/1.8",1/2",1/2.5", 1/2.7"
-
IR correction: 24h day & night vision 400~900nm
-
Application: All bldg., school, exit, room, metrol, highway
|
Model 型号
|
SVD0825IR-8M
|
|
Resolution 像素
|
8.0 Megapixel
|
|
Format 靶面
|
1/1.7"
|
|
Focal Length 焦距
|
8-25mm
|
|
IR 红外
|
IR
|
|
Aperture (Close) 光圈
|
F1.4 DC iris
|
|
Angle of View (°)
|
1/1.7" (4:3)
|
64*52*39.1
|
|
1/1.8" (3:2)
|
61.1*51*34.2
|
|
1/2"
|
55*44.3*33.4
|
|
M.O.D 最近物距
|
1.5m
|
|
Distortion 畸变
|
-8.6% ~ -4.9%
|
|

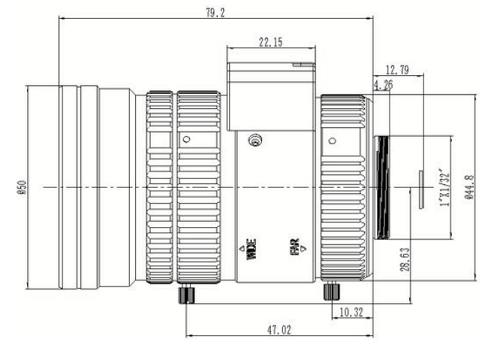

Size 尺寸
|
Φ50*79.2mm
|
|
BFL 光学后焦
|
7.74~9.88mm
|
|
MFL 机械后焦
|
7.24~9.38mm
|
|
T.T.L 光学总长
|
36.2mm
|
|
Mount 接口
|
CS
|
|
Weight 重量
|
265g
|
|
Marks 备注
|
IR Coating 400~900nm
|
|
