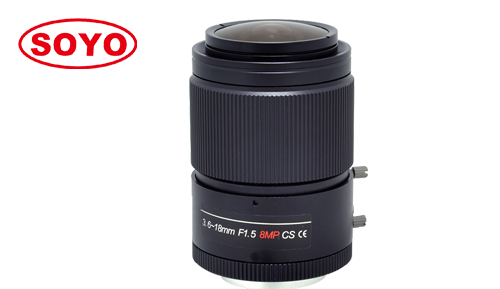

Product name：SVD3618IR-8M ( 3.6-18mm ) 1/1.7"

Product description：

1/1.7" 3.6-18mm 8.0 Megapixel Lenses Varifocal CCTV Lens Security Surveillance Smart City ITS Face Recognition IR Day Night C/CS Mount China Original Camera Optics

High resolution: 8 megapixel cover 4K & 1080P
Wide focal length: Covering 3.6-18mm, 3.8-16mm, 4-16mm, 4-12mm
Big aperture: F1.5 suitable for dark vision
Large format: 1/1.7" can cover all 1/1.8",1/2",1/2.5", 1/2.7"
IR correction: 24h day & night vision
Application: All bldg., school, exit, room, metrol, highway.

Model 型号		SVD3618IR-8M
Resolution 像素		8.0 Megapixel
IR Correction 红外		IR
Format 靶面		1/1.7"
Focal Length 焦距		3.6-18mm
Aperture (Close/360) 光圈		F1.5 DC Iris
Angle of View (°)	2/3"	13511361
	1/1.7"	14712164
	1/2"	/
M.O.D 最近物距		0.5m

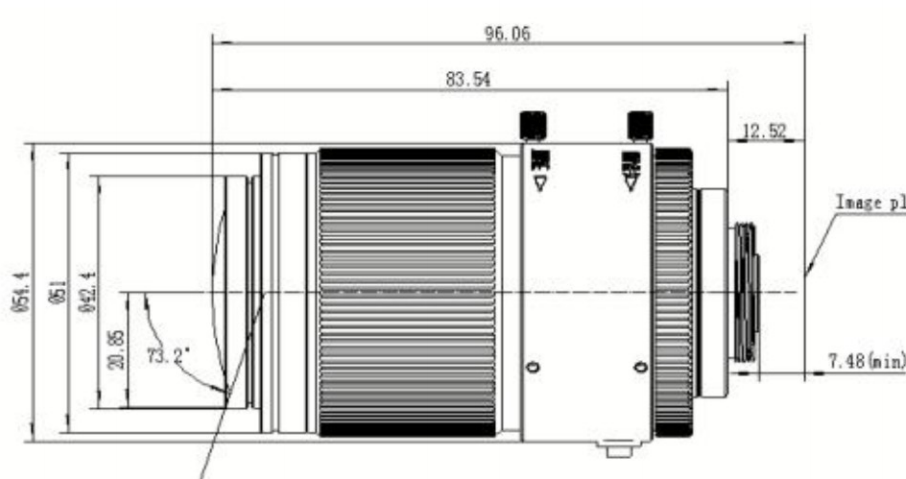

Size 尺寸		Φ54.4*83.5mm
Distortion 畸变		-48% ~ -2%
Mount 接口		CS
Weight 重量		210g
