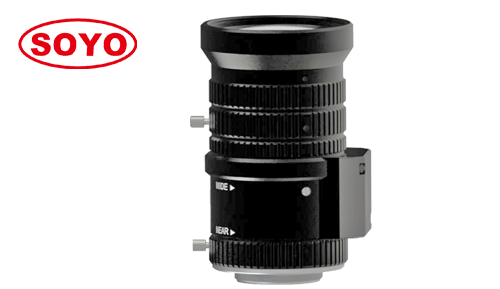

Product name：SVD0550IR-6M ( 5-50mm ) 1/2.7"

Product description：

1/2.7" 5-50mm 6.0 Megapixel Lenses Security Surveillance Camera Varifocal CCTV Lens Smart Recognition ITS Traffic IR Day Night C/CS Mount China Optics Auto Iris

High resolution : 6.0 megapixel high resolution cover all 5MP, 3MP,1080P 高像素600万
IR correction : 24h day & night vision 日夜红外矫正
Beautiful design : small size can fit all box size, with red line. 紧凑型小尺寸红圈设计
Application : Highway, metro, parking, gate, exit/entrance... 出入口等

Model 型号		SVD0550IR-6M
Resolution 像素		6.0 Megapixel
Format 靶面		1/2.7"
Focal Length 焦距		5~50mm
IR Correction 红外		IR
Aperture (Close/360) 光圈		F1.4 DC iris
Angle of View (°)	1/2.7"	*635037*
	1/3"	*574533.4*
	1/4"	*4333.425*
M.O.D 最近物距		0.5m
Distortion 畸变		W -13% ~ -1% T

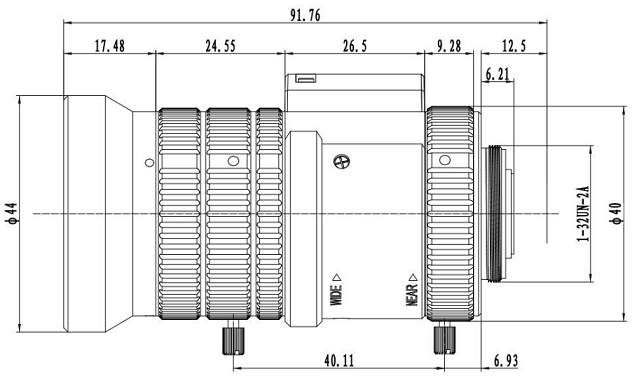

Size 尺寸		Φ*4484.45**mm
BFL 光学后焦		7.3mm
MFL 机械后焦		6.8mm
T.T. 光学总长		91.76mm
Mount 接口		CS
Weight 重量		200g
Marks 备注		IR Coating 400~850nm
