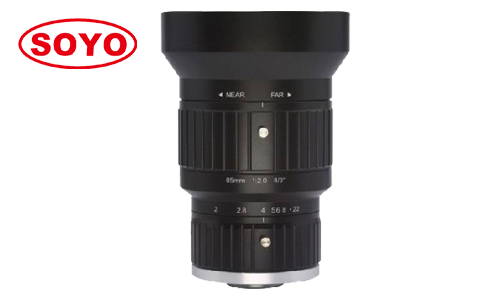

85mm 4/3" 10MP Megapixel Lenses Machine Vision FA <0.04% Low Distortion Industrial Automation SMT AOI Semiconductor Color Sort Recognition Positioning Measurement Camera CCTV Lens China Optics Asseccory 85mm超大靶面4/3英寸1000万像素低畸变智能交通、视觉、监控等工业自动化用。
Model 型号
S43MV85H20-10M
Resolution 像素
10 Megapixel
Format 靶面
4/3" (Φ23mm)
Focal Length 焦距
85mm
Aperture (Close) 光圈
F2.0 Manual iris
Angle of View (°)
视场角
4/3"
15.4*12.1*9.3 (310*242*186mm)
1"
10.8*8.6*6.5 (215*172*129mm)
1/2"
5.4*4.3*3.3 (108*86*65mm)
M.O.D 最近物距
1.2m
Distortion 畸变
0.04% @y=11.5mm
B.F.L 光学后焦
24.5mm
Size 尺寸
Φ80*111.7mm
Filter Size 滤镜尺寸
M77*0.75
Mount 接口
C
Weight 重量
687g
Marks 备注
Magnification -0.075x ; TTL 113.9mm
